Inductor 33uH

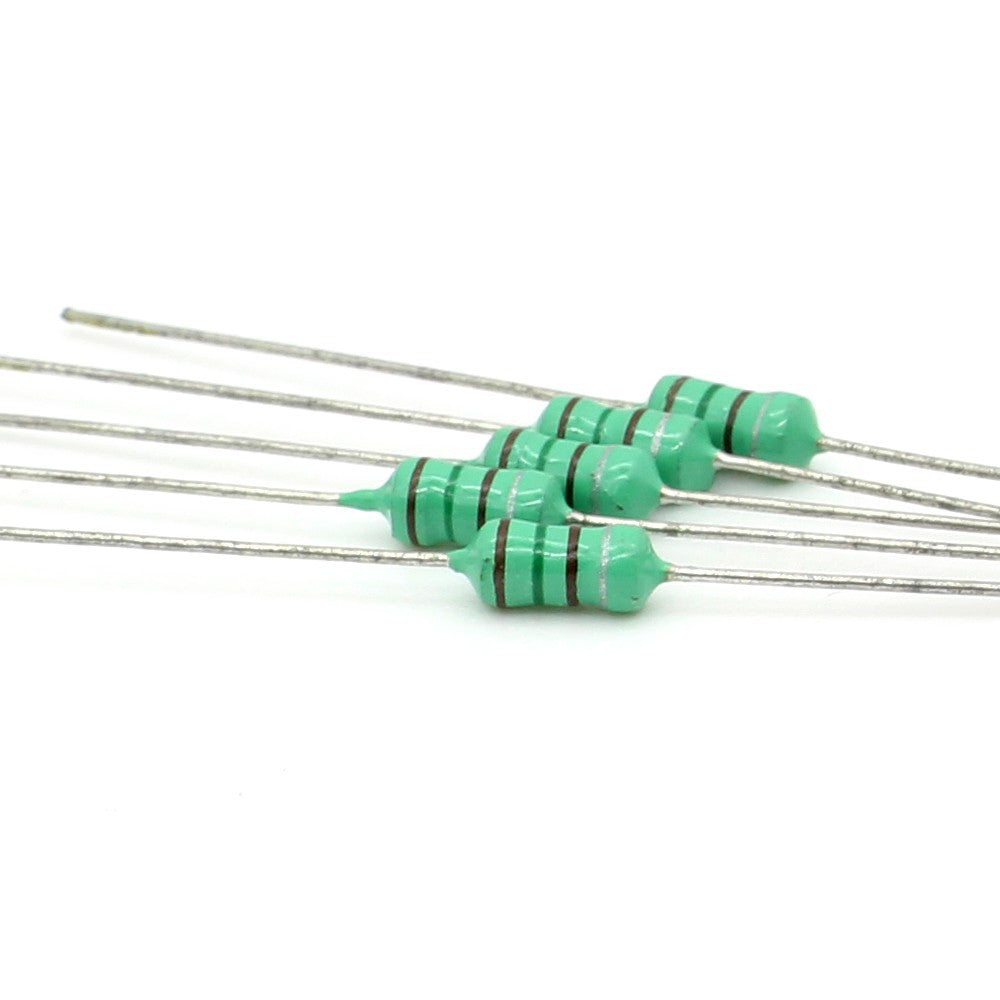

The Inductor 33uH is a fixed inductor with an inductance of 33 µH (microhenry). It stores energy in its magnetic field and opposes fast changes in current, so it is used to smooth the output of switching regulators, filter supply rails and build LC filters and tuned circuits. It has no polarity and is a handy value to keep for power electronics projects and repairs.

Inductor 33uH Specifications

• Inductance: 33 µH (0.033 mH)
• Type: fixed inductor, passive component
• Polarity: none, can be fitted either way round
• Reactance: about 20.7 Ω at 100 kHz and 207 Ω at 1 MHz (XL = 2πfL)
• Resonance: about 88 kHz with a 100 nF capacitor (f = 1 / (2π√LC))

Inductor 33uH Applications

• Output inductor for DC-DC buck and boost converters (check the converter datasheet for the value it needs)
• LC filters on power supply and audio lines
• RF chokes and signal filtering
• Reducing switching noise and EMI on circuit boards
• Electronics labs for learning about RL and LC circuits

What's in the Box

• 1 × 33 µH inductor

Tip: When replacing an inductor in a converter, match both the inductance and the current rating. If the inductor gets hot or the output becomes noisy under load, the current may be too high for it, which can saturate the core and lower the inductance.
