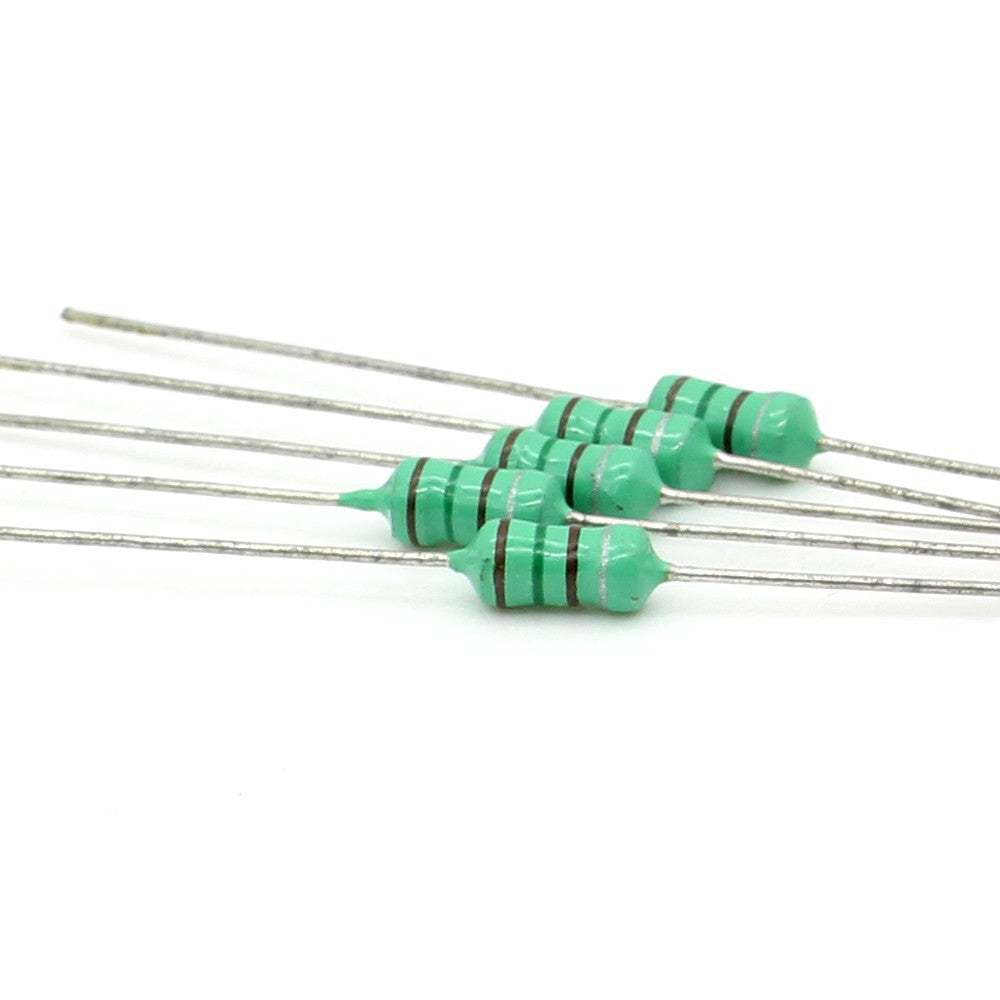

Inductor 68uH

The Inductor 68uH is a fixed inductor with an inductance of 68 µH (microhenry). An inductor stores energy in a magnetic field and resists fast changes in current, which makes it useful for filtering power rails, building LC filters and smoothing the output of switching regulators. It has no polarity and suits prototyping, repairs and electronics lab work.

Inductor 68uH Specifications

• Inductance: 68 µH (0.068 mH)
• Type: fixed inductor, passive component
• Polarity: none, can be fitted either way round
• Reactance: about 42.7 Ω at 100 kHz and 427 Ω at 1 MHz (XL = 2πfL)
• Resonance: about 61 kHz with a 100 nF capacitor (f = 1 / (2π√LC))

Inductor 68uH Applications

• Output inductor for DC-DC buck and boost converters (check the converter datasheet for the value it needs)
• LC low-pass filters on power supply lines
• RF chokes that block high-frequency signals while passing DC
• Reducing noise (EMI) between digital and analog sections of a board
• Electronics labs for learning about RL and LC circuits

What's in the Box

• 1 × 68 µH inductor

Tip: In power circuits, make sure the inductor's current rating is above the peak current of your converter, because too much current makes it overheat and can saturate its core, which lowers the inductance. An LCR meter is the easiest way to confirm the value before fitting it.
