Inductor RF Choke 8*10 4.7mH
Part no. 10470046
- Pick up in Msaitbeh, Beirut
- Delivery across Lebanon
- Bulk and education pricing on request
Description

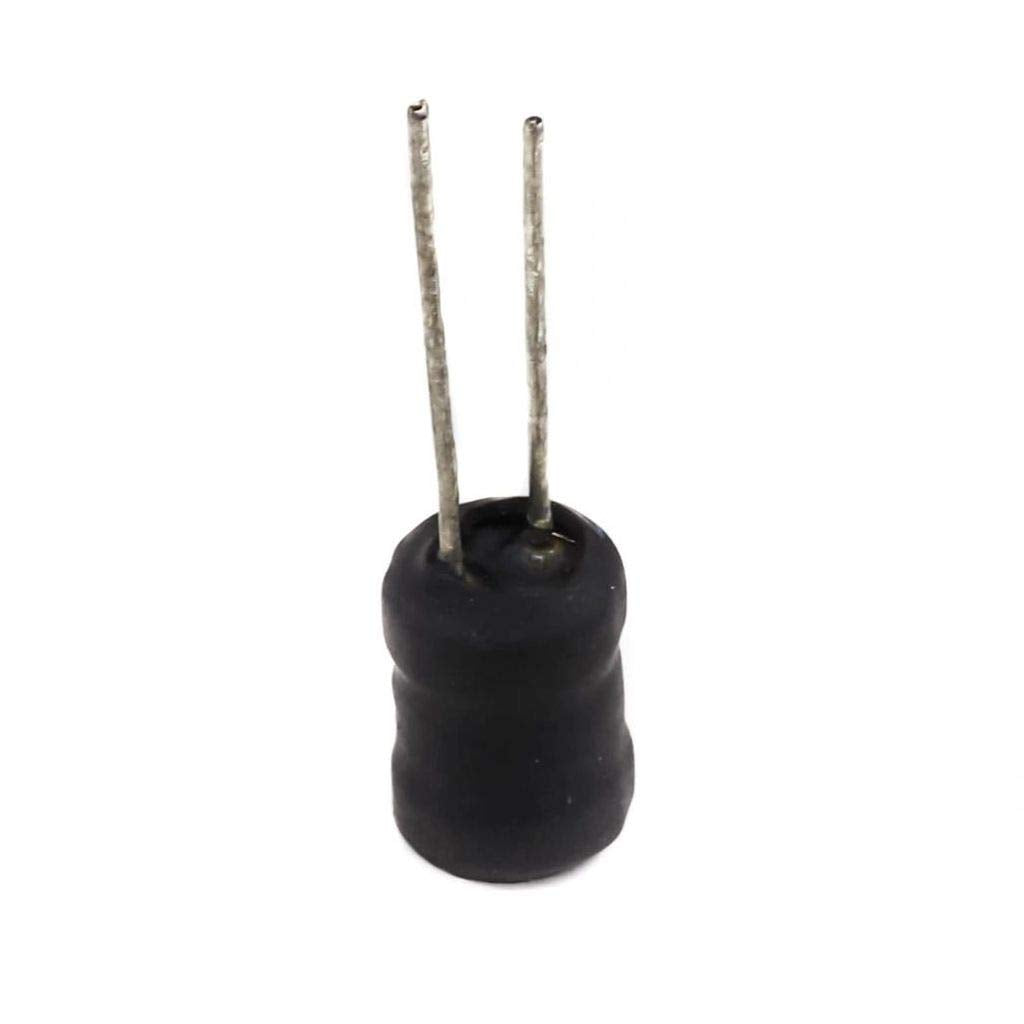

The Inductor RF Choke 8*10 4.7mH is a fixed inductor with an inductance of 4.7 mH in an 8 × 10 mm through-hole body. An inductor stores energy in a magnetic field and resists changes in current, so this choke passes DC while blocking or filtering AC signals and noise. The 4.7 mH value suits audio-range LC filters, supply-line filtering and lab experiments.
Inductor RF Choke 8*10 4.7mH Specifications
- Inductance: 4.7 mH (4,700 µH)
- Size: 8 × 10 mm (from the title, 8*10)
- Type: fixed inductor (choke)
- Mounting: through-hole, two leads
- Reactance: about 30 Ω at 1 kHz and about 295 Ω at 10 kHz
- Polarity: none, can be fitted either way round
Inductor RF Choke 8*10 4.7mH Applications
- LC low-pass filters on power and audio lines
- LC resonance experiments (4.7 mH with 100 nF resonates near 7.3 kHz)
- Blocking AC noise on DC supply lines
- Lab experiments on inductance and RL time constants
What's in the Box
- 1 × 4.7 mH inductor
Tip: High-value inductors are wound with many turns of thin wire, so they have a noticeable DC resistance and a limited current rating. The current rating is not stated for this part, so use it in signal and filter circuits with modest currents and measure its DC resistance with a multimeter if your design depends on it.
