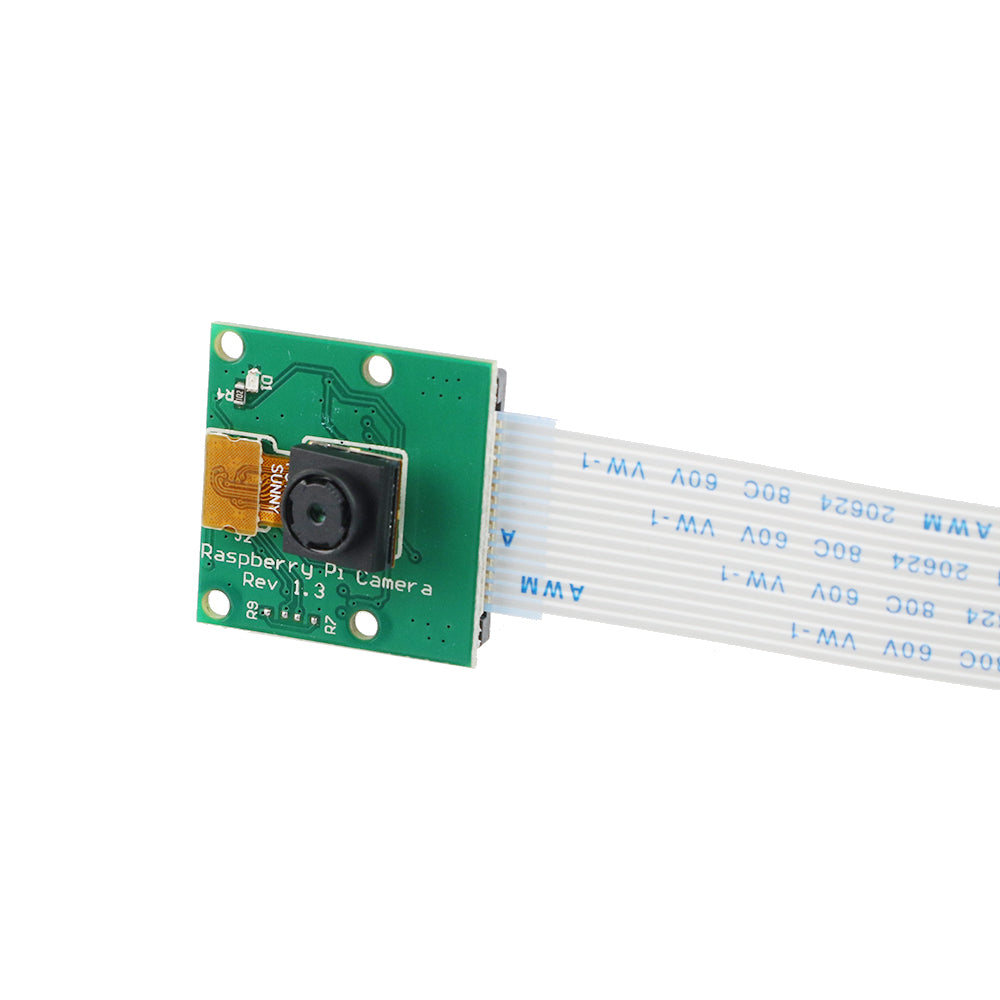

Raspberry Pi Camera Rev 1.3

The Raspberry Pi Camera Rev 1.3 is a compact 5-megapixel camera board built around the OmniVision OV5647 sensor. It connects to the Raspberry Pi camera (CSI) port with a flat ribbon cable and records still photos and HD video, which makes it a popular choice for security cameras, time-lapse rigs, robots and computer vision projects with OpenCV.

Raspberry Pi Camera Rev 1.3 Specifications

• Image sensor: OmniVision OV5647, 5 MP
• Still resolution: 2592 × 1944 pixels
• Video: 1080p at 30 fps, 720p at 60 fps, 640 × 480 at 60/90 fps
• Lens: fixed focus
• Interface: MIPI CSI-2, 15-pin ribbon connector
• Board size: approx. 25 × 24 mm
• Software: supported by the Raspberry Pi OS camera tools (libcamera / rpicam-apps) and the Picamera2 Python library

Raspberry Pi Camera Rev 1.3 Applications

• Home security and monitoring cameras
• Time-lapse and wildlife photography
• Robot vision and object detection with OpenCV
• Video streaming and school computing projects

What's in the Box

• 1 × Raspberry Pi Camera Rev 1.3 module

Tip: Power off the Raspberry Pi before connecting the ribbon cable, and insert it with the contacts facing the right way for your board. Raspberry Pi Zero and Raspberry Pi 5 use a smaller 22-pin camera connector, so they need a 22-pin to 15-pin adapter cable.
