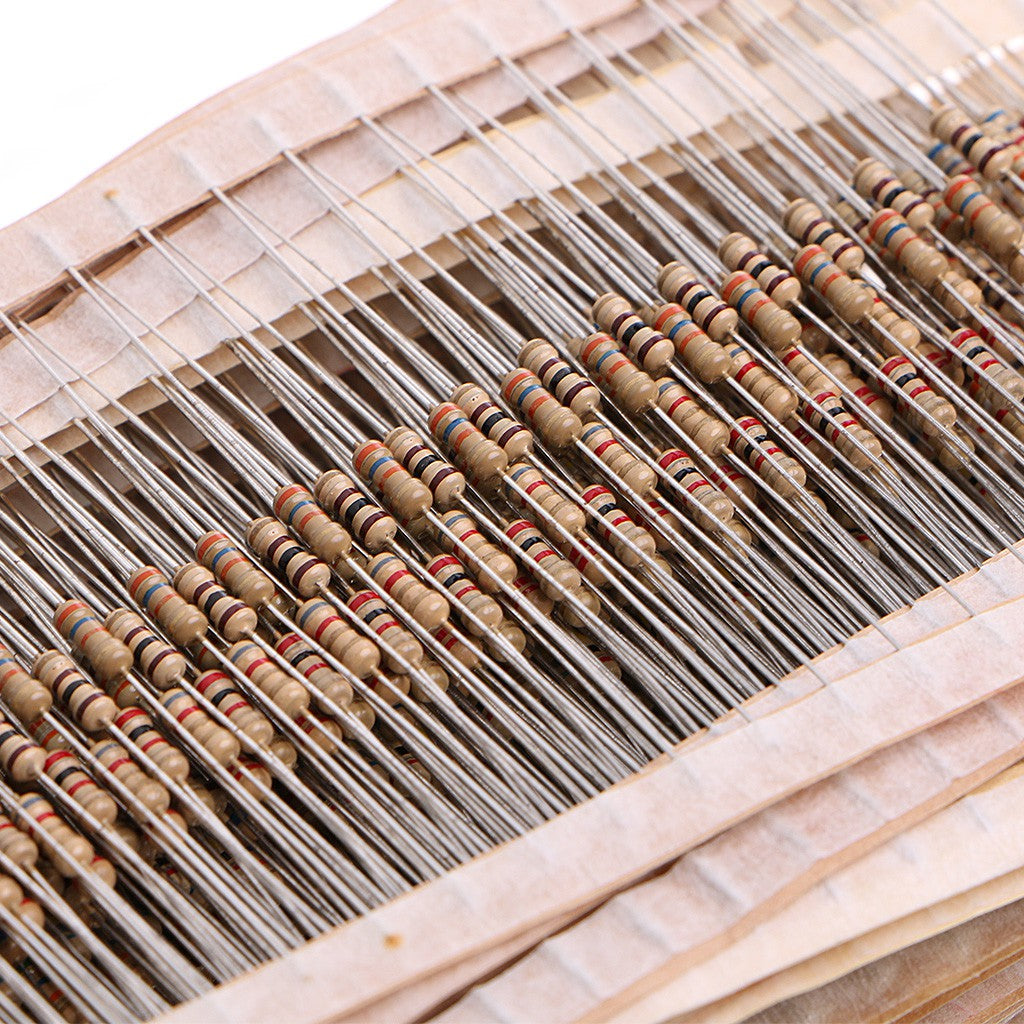

Resistor 0.25W 3.6 ohm (10 pcs)

The Resistor 0.25W 3.6 ohm is a through-hole fixed resistor with a resistance of 3.6 Ω and a 0.25 W rating, in a pack of 10. With such a low value it can carry up to about 260 mA at its full rating while dropping less than 1 V, which makes it suitable for current sensing, gate resistors and low-loss series resistors.

Resistor 0.25W 3.6 ohm Specifications

• Resistance: 3.6 Ω (3.6 ohms)
• Power rating: 0.25 W (1/4 W)
• Value series: standard E24 value
• Colour code: orange, blue, gold (4-band) or orange, blue, black, silver (5-band), followed by the tolerance band
• Maximum current: about 264 mA at the full 0.25 W
• Maximum voltage: about 0.95 V across the resistor at the full 0.25 W
• Type: fixed resistor, axial leads, through-hole
• Pack size: 10 pieces

Resistor 0.25W 3.6 ohm Applications

• Current sensing: 100 mA through 3.6 Ω gives 0.36 V
• Gate resistors for MOSFETs driven by a gate-driver IC
• Emitter ballast resistors for paralleled transistors
• Low-loss series resistors in power and audio circuits
• Electronics education and prototyping

What's in the Box

• 10 × 3.6 Ω 0.25 W resistors

Tip: When reading a current-sense voltage with an Arduino Uno, the 10-bit ADC has steps of about 4.9 mV at the 5 V reference, so with 3.6 Ω each step equals about 1.4 mA. Switch to the 1.1 V internal reference for finer readings of small currents.
