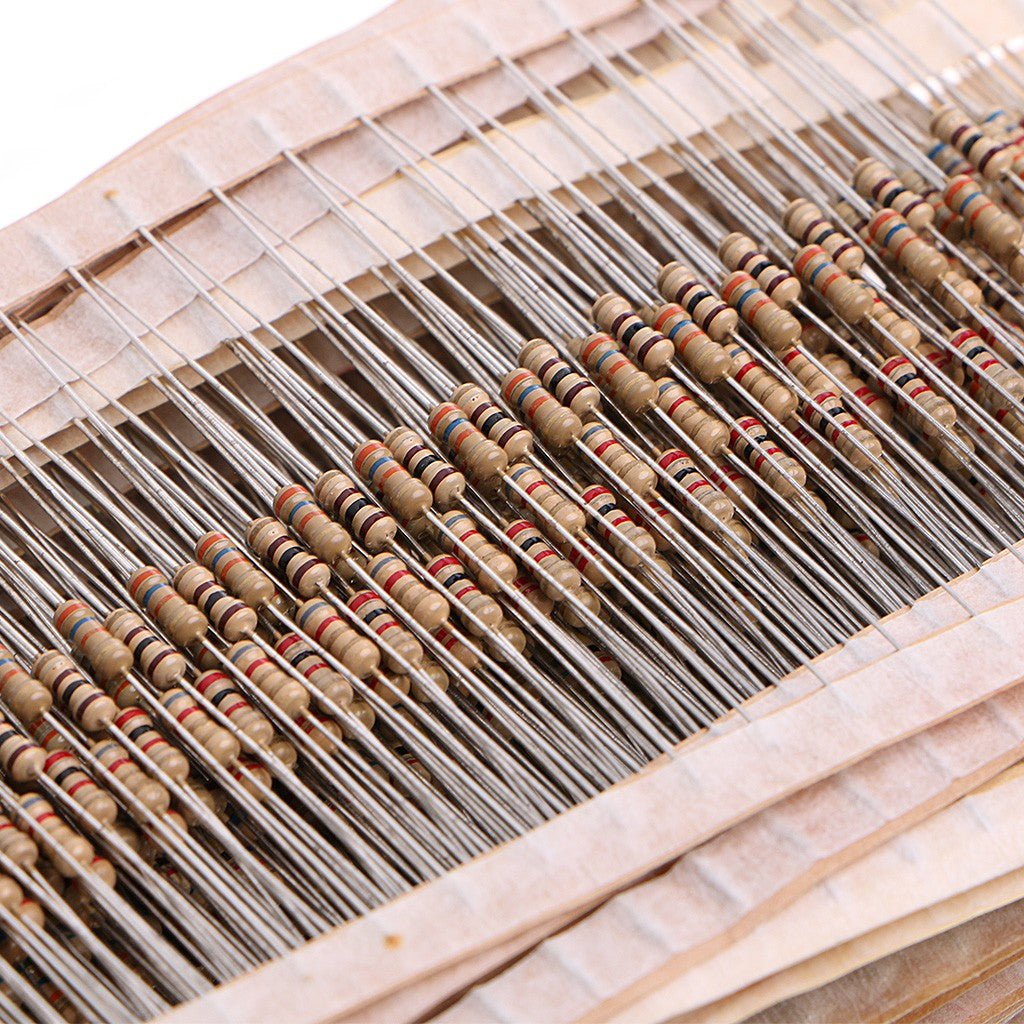

Resistor 0.25W 75 ohm (10 pcs)

The Resistor 0.25W 75 ohm is a through-hole fixed resistor with a resistance of 75 Ω and a power rating of 0.25 W, sold in a pack of 10. 75 Ω matches the standard impedance of video and coaxial cable, so it is used to terminate composite video and similar lines, and it also limits LED current on 3.3 V outputs.

Resistor 0.25W 75 ohm Specifications

• Resistance: 75 Ω
• Power rating: 0.25 W (1/4 W)
• Type: fixed resistor, axial leads, through-hole
• Colour code: violet, green, black (4-band) or violet, green, black, gold (5-band), followed by a tolerance band
• Fits: breadboards, perfboards and PCBs
• Pack size: 10 pieces

Resistor 0.25W 75 ohm Applications

• 75 Ω termination for composite video and coaxial signal lines
• Red LED indicators on 3.3 V outputs
• Gate and series resistors in driver circuits
• Electronics education and prototyping

What's in the Box

• 10 × 75 Ω 0.25 W resistors

Tip: Resistors have no polarity, so they can be fitted either way round. With 75 Ω, the 0.25 W limit is reached at about 4.3 V across the resistor (about 58 mA), so do not connect it directly across 5 V. A red LED on a 3.3 V output through 75 Ω draws about 17 mA.
