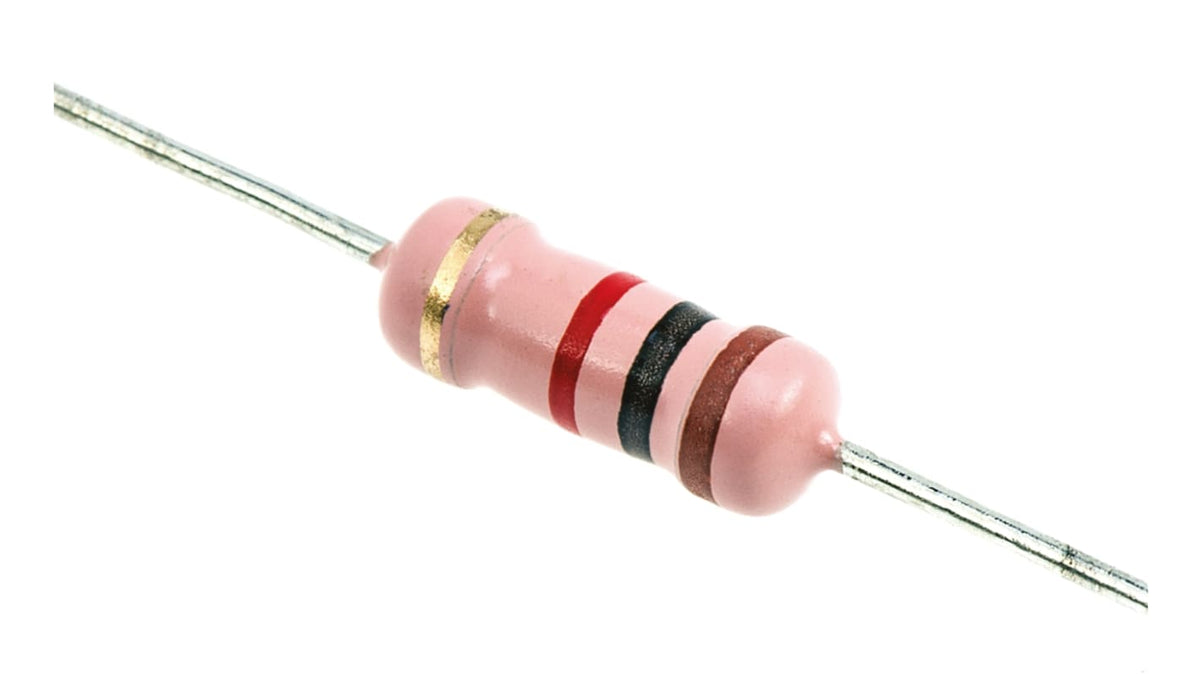

Resistor 2W 22 ohm 5pcs

The Resistor 2W 22 ohm is a fixed resistor with a resistance of 22 Ω and a power rating of 2 W, sold in a pack of 5. The higher wattage lets it carry more current than standard 0.25 W resistors, so it suits power circuits, current limiting for small lamps and LEDs, and dummy loads for testing supplies. The value is marked with a 4-band colour code.

Resistor 2W 22 ohm Specifications

• Resistance: 22 Ω
• Power rating: 2 W
• Tolerance: ±5%
• Colour code: 4 bands: red, red, black, gold
• Type: fixed resistor, through-hole
• Pack size: 5 pieces

Resistor 2W 22 ohm Applications

• Current limiting for power LEDs and small lamps
• Inrush and surge limiting in small power circuits
• Dummy loads for testing power supplies and chargers
• Bleeder resistors for discharging small capacitors
• Electronics repair and replacement work

What's in the Box

• 5 × 22 Ω 2 W resistors

Tip: At 2 W, a 22 Ω resistor can carry about 0.3 A, which means about 6.6 V across it (P = I² × R). Run it well below that for long life, leave space around it for cooling and expect it to get hot near its rating.
