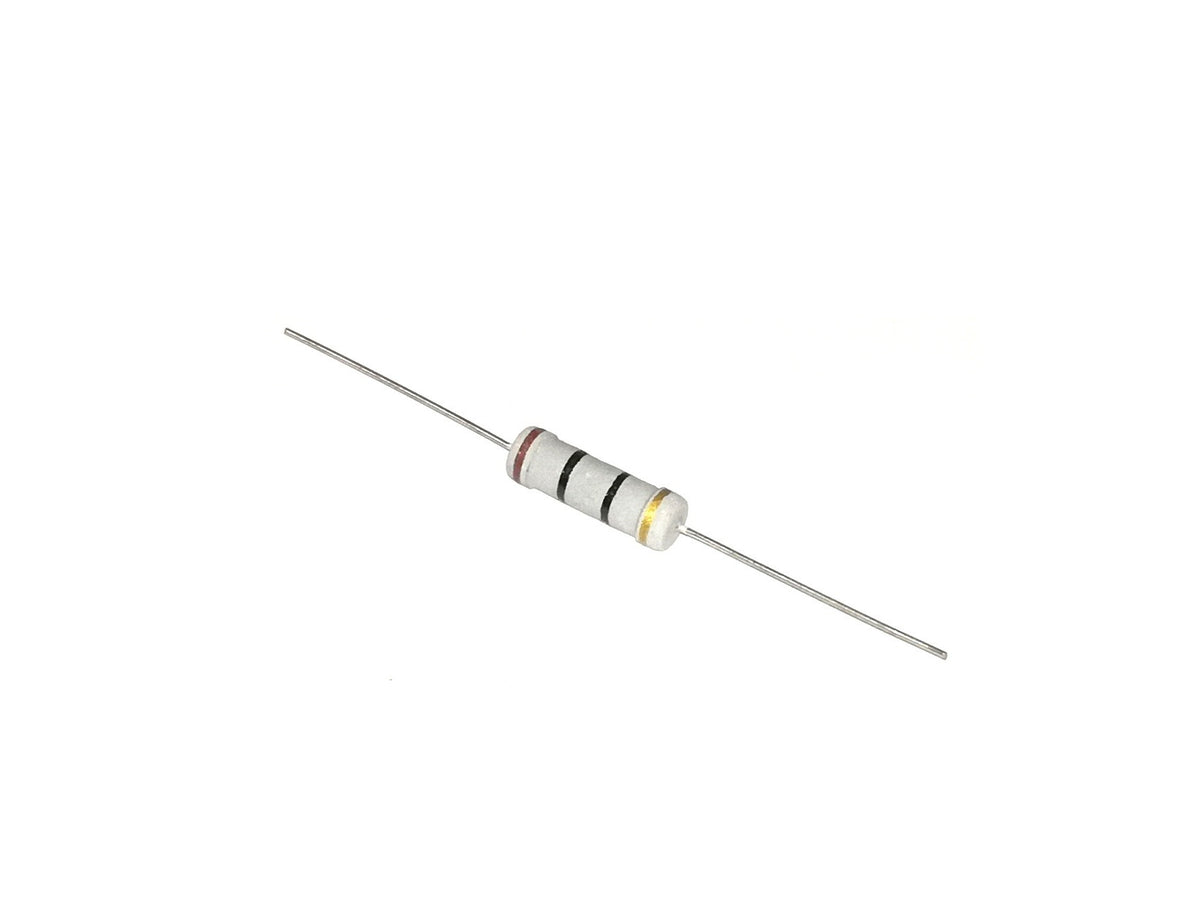

Resistor 3W 10 ohm

The Resistor 3W 10 ohm is a fixed power resistor with a resistance of 10 Ω and a power rating of 3 W. The higher wattage lets it carry the larger currents found in power circuits, where a standard 0.25 W resistor would overheat. It is used for current limiting, for setting the current of constant-current sources, as a test load for power supplies and as a replacement part in repairs.

Resistor 3W 10 ohm Specifications

• Resistance: 10 Ω (also written 10R)
• Power rating: 3 W
• Maximum continuous current: about 0.55 A at the full 3 W rating (I = √(P / R))
• Maximum voltage across it at 3 W: about 5.5 V
• Type: fixed power resistor, through-hole
• Quantity: 1 piece

Resistor 3W 10 ohm Applications

• Setting the current of an LM317 constant-current source: 1.25 V / 10 Ω = 125 mA
• Current limiting for power LEDs, small lamps and DC motors
• Short tests of 5 V supplies and USB chargers (5 V across 10 Ω draws 0.5 A and dissipates 2.5 W)
• Inrush and series current limiting in power circuits
• Replacement part in amplifier and power supply repairs

What's in the Box

• 1 × 10 Ω 3 W resistor

Tip: Power resistors get hot when run near their rating, so for long life use them at about half their rated power, leave space around the body and keep them away from plastic parts and wire insulation.
