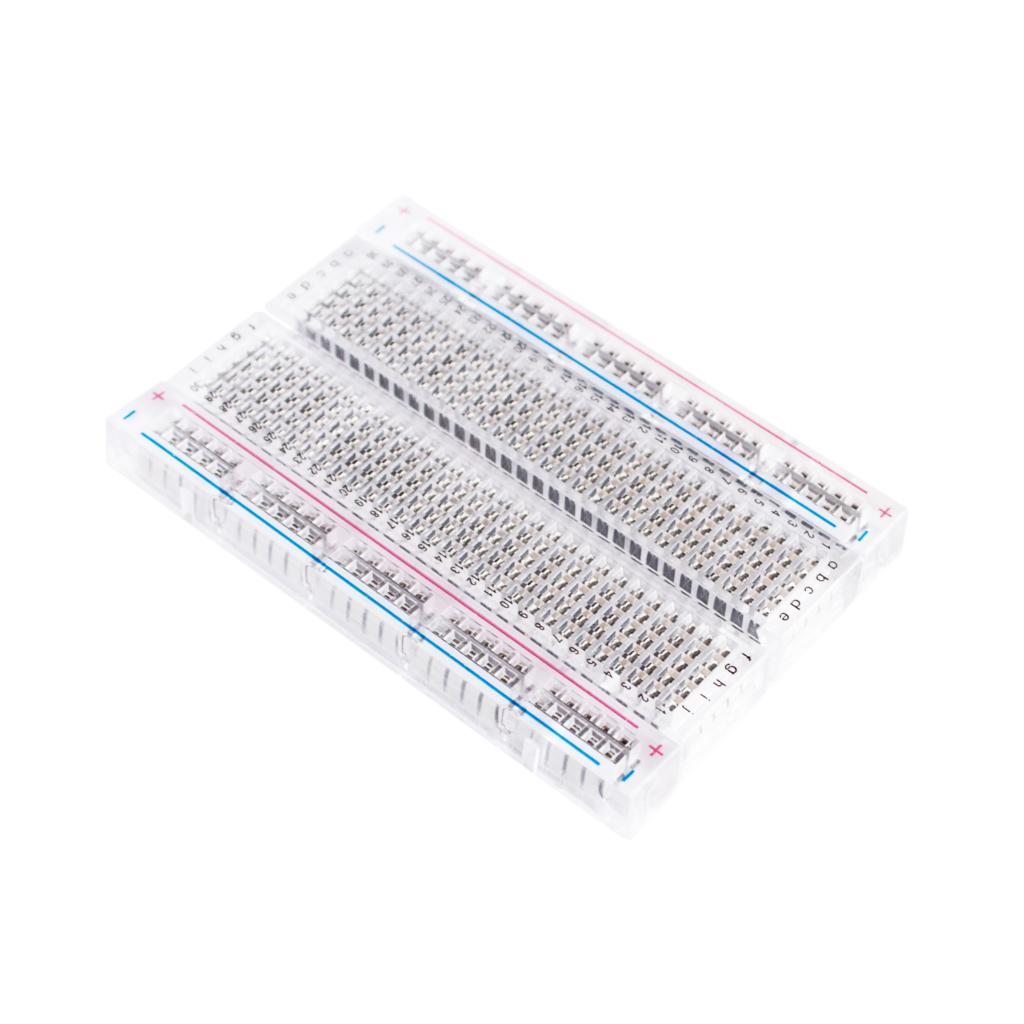

Transparent 400 Points Soldless Breadboard

The Transparent 400 Points Soldless Breadboard is a half-size solderless breadboard with a clear body, so you can see the metal contact strips inside. Push components and jumper wires into the holes to build and test small circuits without soldering, then pull them out and reuse the board. Its compact size suits Arduino Nano, ESP32 and sensor projects, and the see-through body helps students understand how the rows are connected.

Transparent 400 Points Breadboard Specifications

• Tie points: 400 in total
• Body: transparent plastic, contact strips visible
• Terminal strip: 300 tie points in rows of 5, split by a centre channel for DIP ICs
• Power rails: 4 distribution strips with 100 tie points, 2 on each side
• Hole pitch: 2.54 mm (0.1 in), standard for headers and DIP packages
• Wire size: accepts solid jumper wire and component leads, about 20–29 AWG

Transparent 400 Points Breadboard Applications

• Small Arduino, ESP32 and sensor circuits
• Teaching how breadboard rows and power rails are connected
• Testing ICs, LEDs and buttons before soldering
• Extra space next to a larger breadboard

What's in the Box

• 1 × transparent 400-point solderless breadboard

Tip: Holes in the same row of 5 are connected to each other, but the two halves of the board are not. Place DIP ICs across the centre channel so each pin gets its own row.
