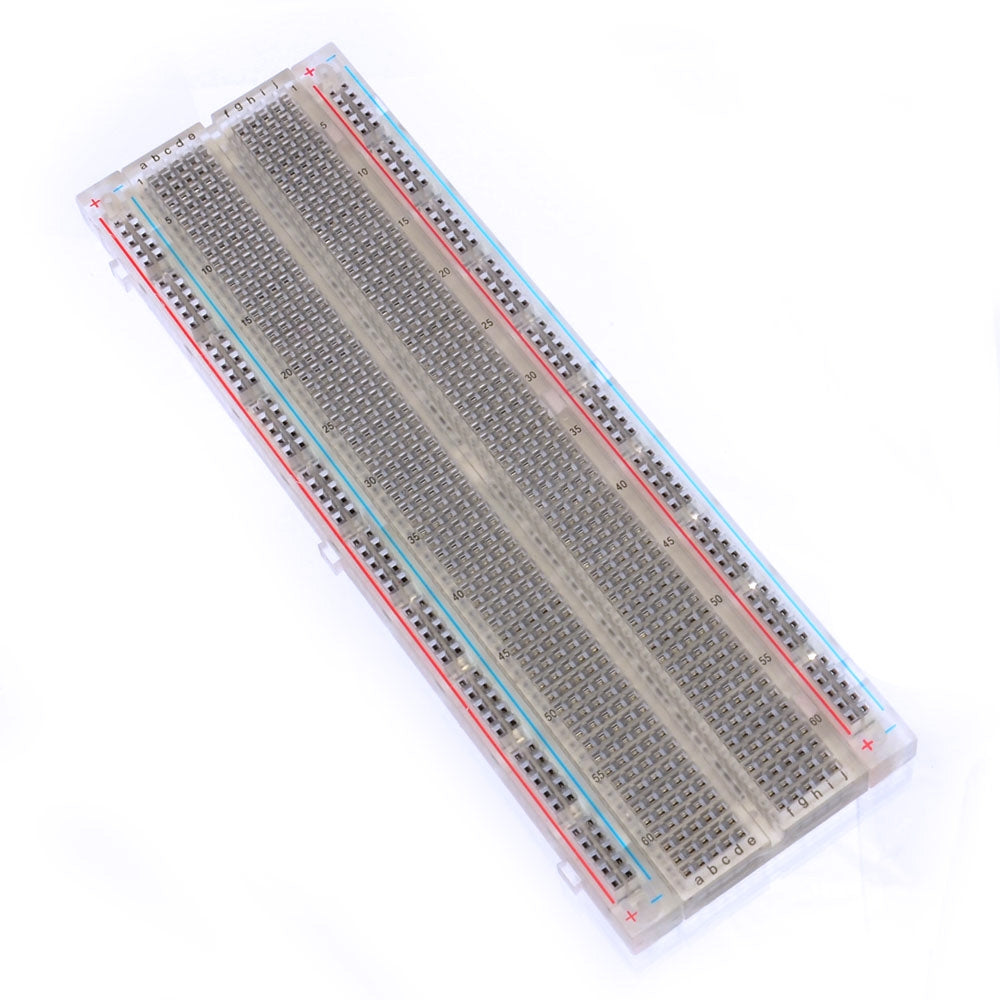

Transparent 830 Points Soldless Breadboard

The Transparent 830 Points Soldless Breadboard is a full-size solderless breadboard with a clear body, so you can see the metal contact strips inside and understand exactly which holes are connected. Push components and jumper wires into the holes, test your circuit and pull them out to reuse the board. It fits Arduino, ESP32 and Raspberry Pi projects, DIP ICs and most through-hole parts.

Transparent 830 Points Breadboard Specifications

• Tie points: 830 in total
• Terminal strip: 630 tie points in rows of 5, split by a centre channel for DIP ICs
• Power rails: 4 distribution strips with 200 tie points, 2 on each side
• Hole pitch: 2.54 mm (0.1 in)
• Body: transparent plastic, contact strips visible
• Wire size: accepts solid jumper wire and component leads, about 20–29 AWG
• Size: approx. 165 × 55 mm

Transparent 830 Points Breadboard Applications

• Showing how breadboard connections work in classes and STEM labs
• Prototyping Arduino, ESP32 and Raspberry Pi circuits
• Testing sensors, LEDs, buttons and ICs before soldering a PCB
• LED projects, where the clear body lets the light show through

What's in the Box

• 1 × transparent 830-point solderless breadboard

Tip: Look through the clear body to check whether the power rails are split in the middle; if they are, bridge the two halves with a short jumper wire so the whole rail carries power.
