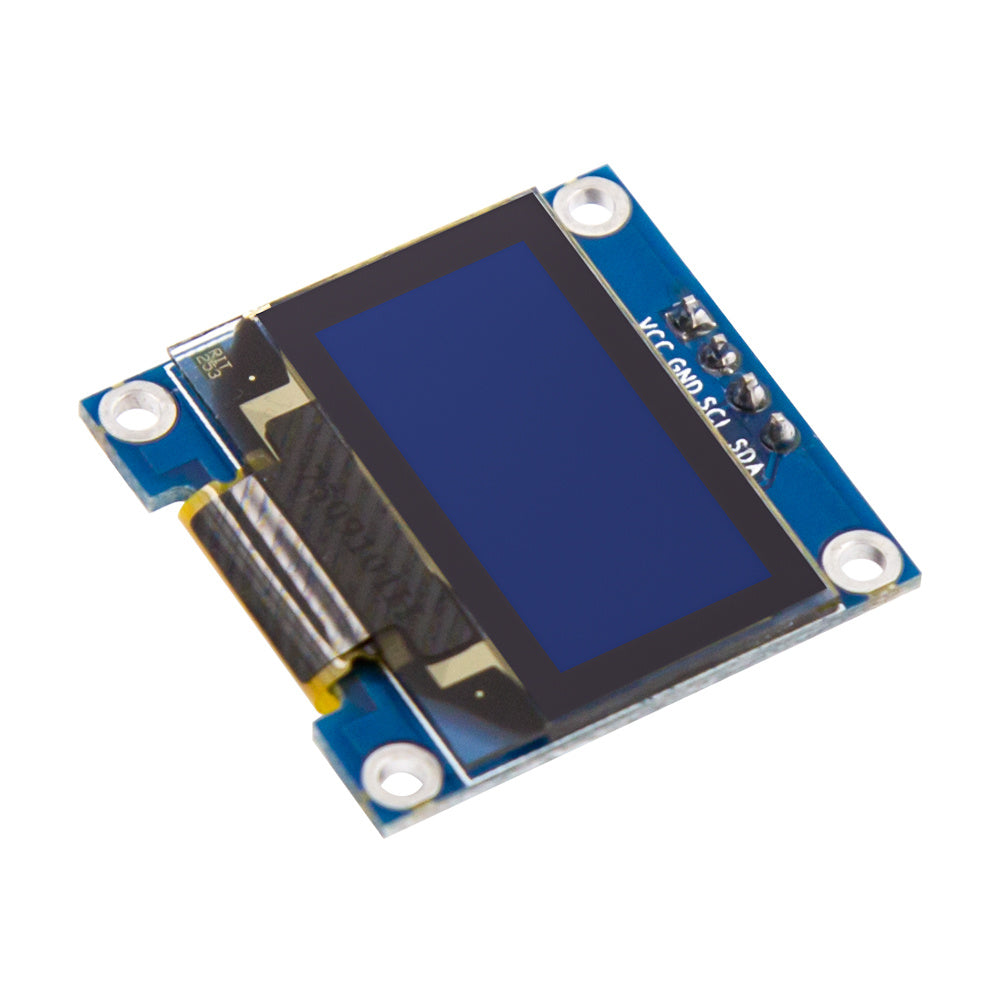

0.96" Inch Blue I2C IIC OLED LCD Module 4pin
Part no. L1: K2368 / L2: G05-1-5 / L3: - (10051399)
- Pick up in Msaitbeh, Beirut
- Delivery across Lebanon
- Bulk and education pricing on request
Description
The 0.96" Inch Blue I2C IIC OLED module is a small 128 × 64 pixel monochrome OLED display with blue pixels and a 4-pin I2C interface. Each pixel gives its own light, so no backlight is needed and text stays sharp with high contrast. It connects to an Arduino, ESP32, ESP8266 or Raspberry Pi with only two data wires, which makes it a favourite for showing sensor readings, menus and status messages.
0.96" Inch Blue I2C IIC OLED Specifications
- Screen size: 0.96 inch diagonal
- Resolution: 128 × 64 pixels
- Display type: OLED, monochrome, blue
- Driver: SSD1306-compatible controller
- Interface: I2C (IIC), usual address 0x3C
- Pins: 4 (GND, VCC, SCL, SDA)
- Supply: 3.3–5 V
0.96" Inch Blue I2C IIC OLED Applications
- Showing sensor readings such as temperature, humidity and distance
- Menus and status screens for Arduino and ESP32 projects
- Clocks, timers and small data loggers
- Wearables, robots and portable gadgets
- Electronics classes and STEM projects
What's in the Box
- 1 × 0.96 inch blue I2C OLED display module (4-pin)
Tip: Check the pin order printed on the board before wiring, because some modules start with VCC and others with GND. On an Arduino Uno connect SDA to A4 and SCL to A5, then use the Adafruit SSD1306 or U8g2 library with address 0x3C.
