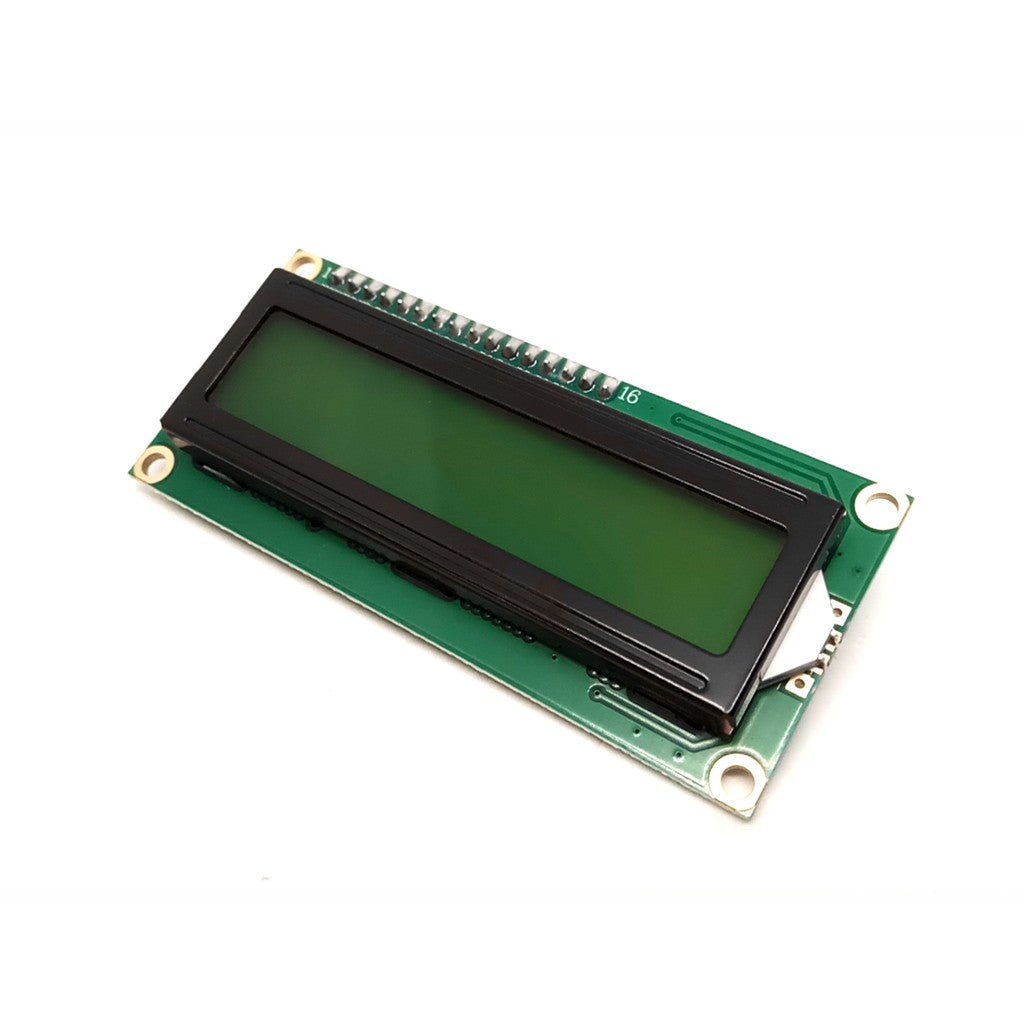

LCD1602 Yellow Green Backlight

The LCD1602 Yellow Green Backlight is a 16×2 character LCD module that shows 2 lines of 16 characters with a yellow-green LED backlight. It uses an HD44780-compatible controller, so it works with the standard LiquidCrystal library on Arduino and with most other microcontrollers. It is a simple, low-cost way to display sensor readings, menus and messages in your projects.

LCD1602 Yellow Green Backlight Specifications

• Display format: 16 characters × 2 lines
• Character size: 5 × 8 dots
• Controller: HD44780 compatible
• Interface: parallel, 4-bit or 8-bit mode
• Connector: 16 pins at 2.54 mm pitch
• Supply voltage: 5 V
• Backlight: yellow-green LED on pins 15 (A) and 16 (K)

LCD1602 Yellow Green Backlight Applications

• Showing temperature and other sensor readings
• Menus and settings screens
• Clocks, timers and counters
• Electronics classes and Arduino starter projects

What's in the Box

• 1 × LCD1602 module with yellow-green backlight

Tip: Connect a 10 kΩ potentiometer to the V0 pin (pin 3) to set the contrast; if the screen shows only blocks or nothing, adjust it first. In 4-bit mode you need only 6 Arduino pins: RS, E and D4–D7.
