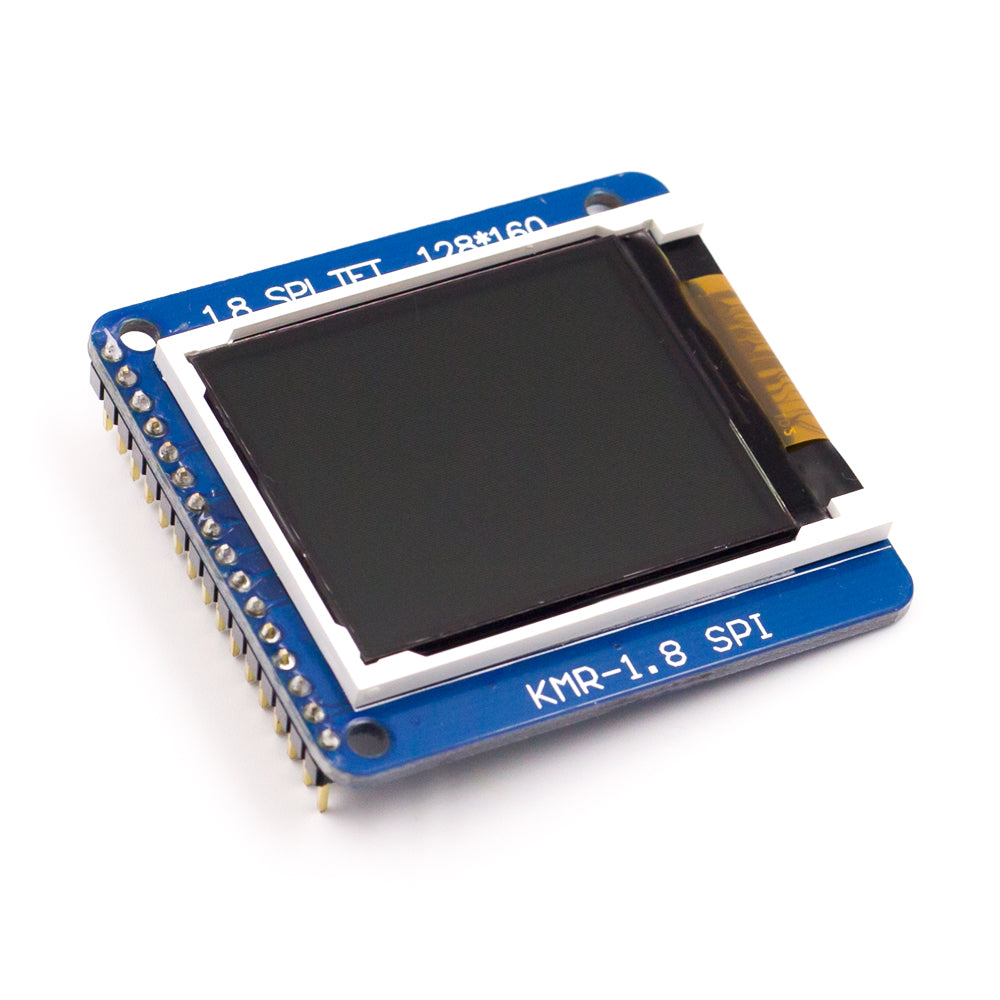

1.8" inch TFT SPI Serial Port LCD Screen Module

The 1.8" inch TFT SPI serial port LCD screen module is a compact full-colour display with 128 × 160 pixels and an ST7735 driver. It connects over the SPI bus with only a few wires, so it suits Arduino, ESP8266, ESP32 and STM32 projects that need to show text, graphs, icons or small images without using many pins.

1.8" inch TFT SPI Specifications

• Screen size: 1.8 inch TFT LCD
• Resolution: 128 × 160 pixels
• Colours: 65K (16-bit RGB)
• Driver IC: ST7735
• Interface: SPI (serial)
• Logic level: 3.3 V

1.8" inch TFT SPI Applications

• Small dashboards for sensor data
• Weather stations and clocks
• Menus for handheld tools and testers
• ESP8266 and ESP32 IoT displays
• Learning graphics programming

What's in the Box

• 1 × 1.8 inch TFT SPI LCD screen module

Tip: Use the Adafruit ST7735 and Adafruit GFX libraries, or TFT_eSPI on ESP32, and initialise the display with the 128 × 160 setting. With 5 V boards such as the Arduino Uno, add series resistors of about 1 kΩ or a level shifter on the signal lines to protect the 3.3 V display.
