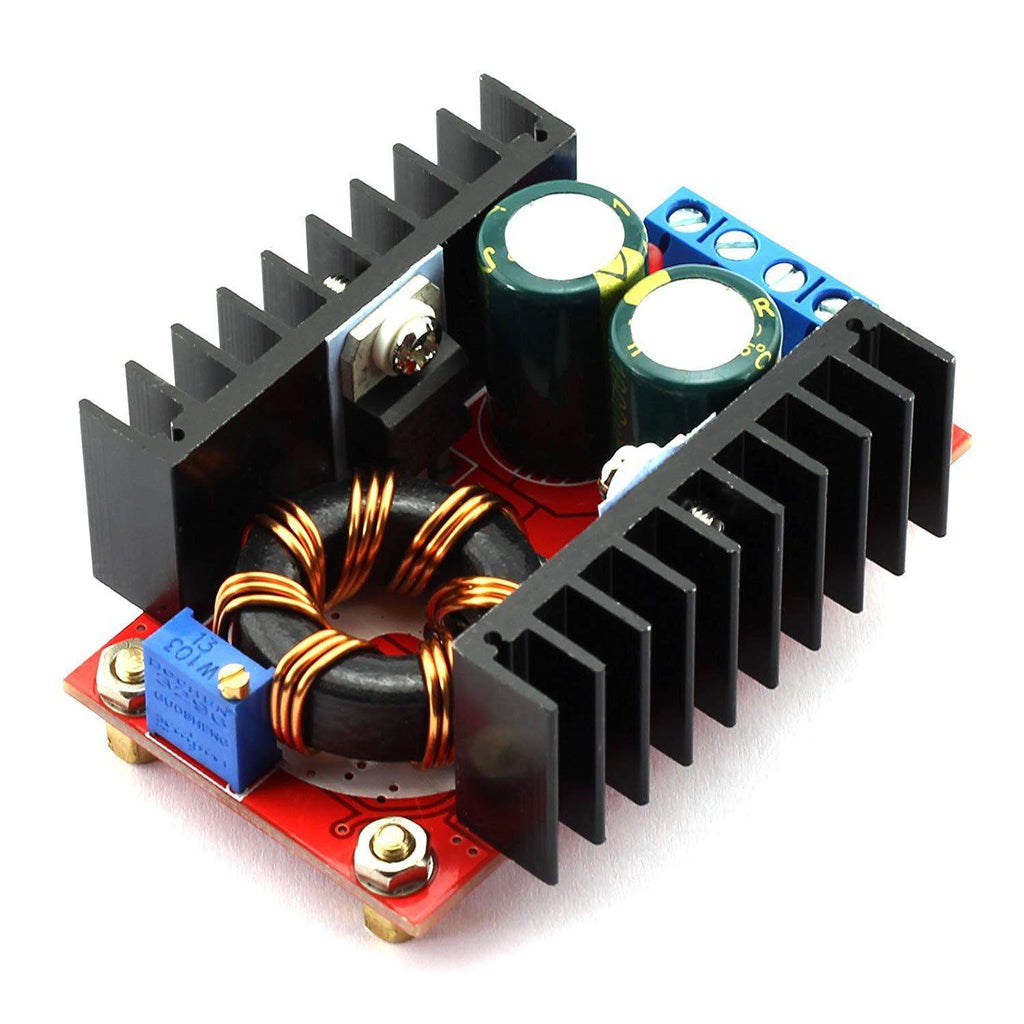

150W Boost Converter DC-DC 10- 32V to 12-35V Step Up Voltage Charger Module

The 150W Boost Converter DC-DC module is a step-up converter that raises a 10–32 V DC input to a higher adjustable output between 12 and 35 V. It is rated up to 150 W with good cooling, which makes it a practical choice for running 19 V laptops, 24 V equipment or LED strips from a 12 V battery.

150W Boost Converter DC-DC Specifications

• Type: DC-DC boost (step-up) converter
• Input voltage: 10–32 V DC
• Output voltage: 12–35 V DC, adjustable with the on-board potentiometer
• Maximum power: 150 W; extra cooling such as a fan is recommended near full power
• Operating rule: the output voltage must be set higher than the input voltage

150W Boost Converter DC-DC Applications

• Running 19 V laptops and 24 V devices from a 12 V car or boat battery
• Driving LED strips and lighting at a stable voltage
• Raising battery voltage in solar and DIY power projects
• Bench testing and power experiments

What's in the Box

• 1 × 150 W DC-DC boost converter module

Tip: Adjust the output with no load connected and a multimeter on the output, then connect the load. Use thick wires and a fuse on the input, because the input current at high power is large: 150 W from a 12 V battery is more than 12 A.
