2.4 Inch TFT Touch Screen Module for UNO R3 Blue

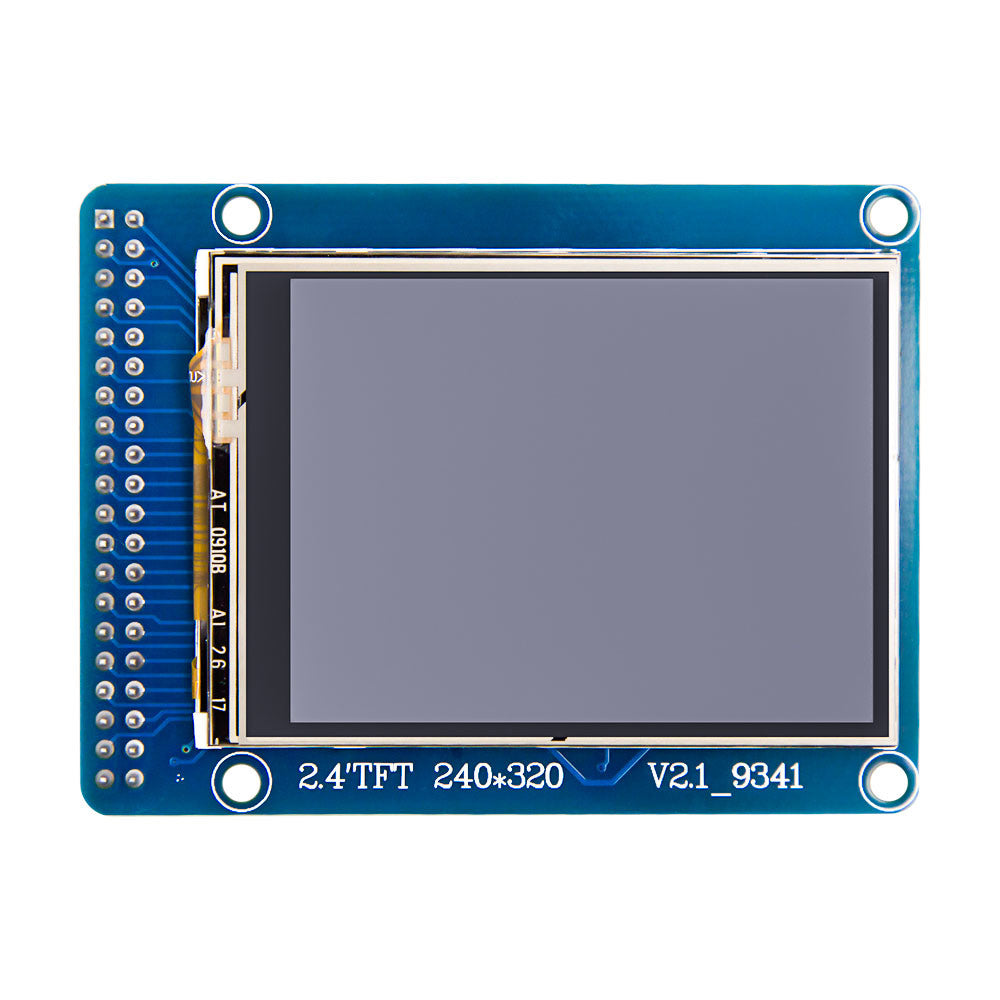

The 2.4 Inch TFT Touch Screen Module for UNO R3 is a colour touch display on a blue PCB that plugs straight onto an Arduino UNO R3. It combines a 240 × 320 pixel TFT screen with a resistive touch panel and a micro SD card slot, so you can build touch menus, show sensor data and display pictures without any extra wiring.

2.4 Inch TFT Touch Screen Module Specifications

• Screen size: 2.4 inch TFT LCD
• Resolution: 240 × 320 pixels, full colour
• Touch: resistive touch panel
• Interface: 8-bit parallel, Arduino shield format
• Storage: micro SD card slot for images and data
• Compatible board: Arduino UNO R3
• PCB colour: blue

2.4 Inch TFT Touch Screen Module Applications

• Touch keypads and door-lock interfaces
• Thermostat and home automation panels
• Live graphs of sensor readings
• Picture viewer for images on a micro SD card
• Drawing apps and simple games

What's in the Box

• 1 × 2.4 inch TFT touch screen shield (blue PCB)

Tip: Use the MCUFRIEND_kbv library with Adafruit GFX and TouchScreen, and run its TouchScreen_Calibr_native example once to calibrate the touch panel for accurate presses. The shield uses most of the UNO's pins, so plan extra sensors around the pins left free.
