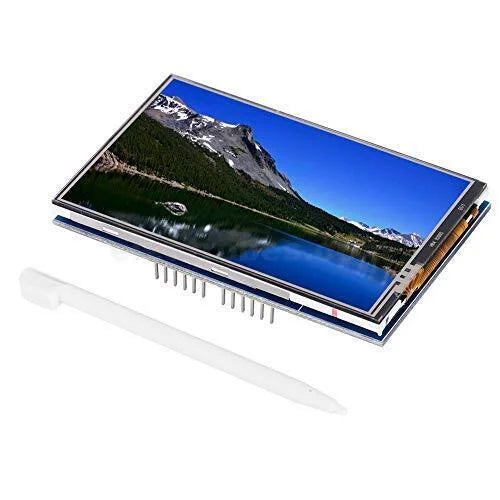

3.5" inch ili9486 TFT Touch Shield LCD Module 480x320 for arduino uno mega2560

The 3.5" inch ili9486 TFT Touch Shield is a 480 × 320 colour LCD with a touch panel, built as a shield that plugs straight onto an Arduino Uno or Mega 2560. Driven by the ILI9486 controller over an 8-bit parallel bus, it can show text, graphics, menus and live sensor readings, and lets users tap on-screen buttons without any extra wiring.

3.5" inch ili9486 TFT Touch Shield Specifications

• Screen size: 3.5 inch
• Resolution: 480 × 320 pixels
• Display type: colour TFT LCD
• Driver IC: ILI9486
• Touch: resistive touch panel (standard for this shield type)
• Interface: 8-bit parallel
• Format: Arduino Uno shield, also fits the Mega 2560
• Libraries: MCUFRIEND_kbv with Adafruit_GFX, plus TouchScreen for touch input

3.5" inch ili9486 TFT Touch Shield Applications

• Touch control panels and menus
• Showing sensor data, graphs and clocks
• Smart home controllers and thermostats
• Simple games and drawing apps
• Classroom and lab display projects

What's in the Box

• 1 × 3.5 inch ILI9486 480 × 320 TFT touch shield

Tip: The shield uses most of the Uno's pins, so plan extra sensors around the few that stay free. Start with the MCUFRIEND_kbv library examples to check the display, then run its touch calibration example before building your own screens.
