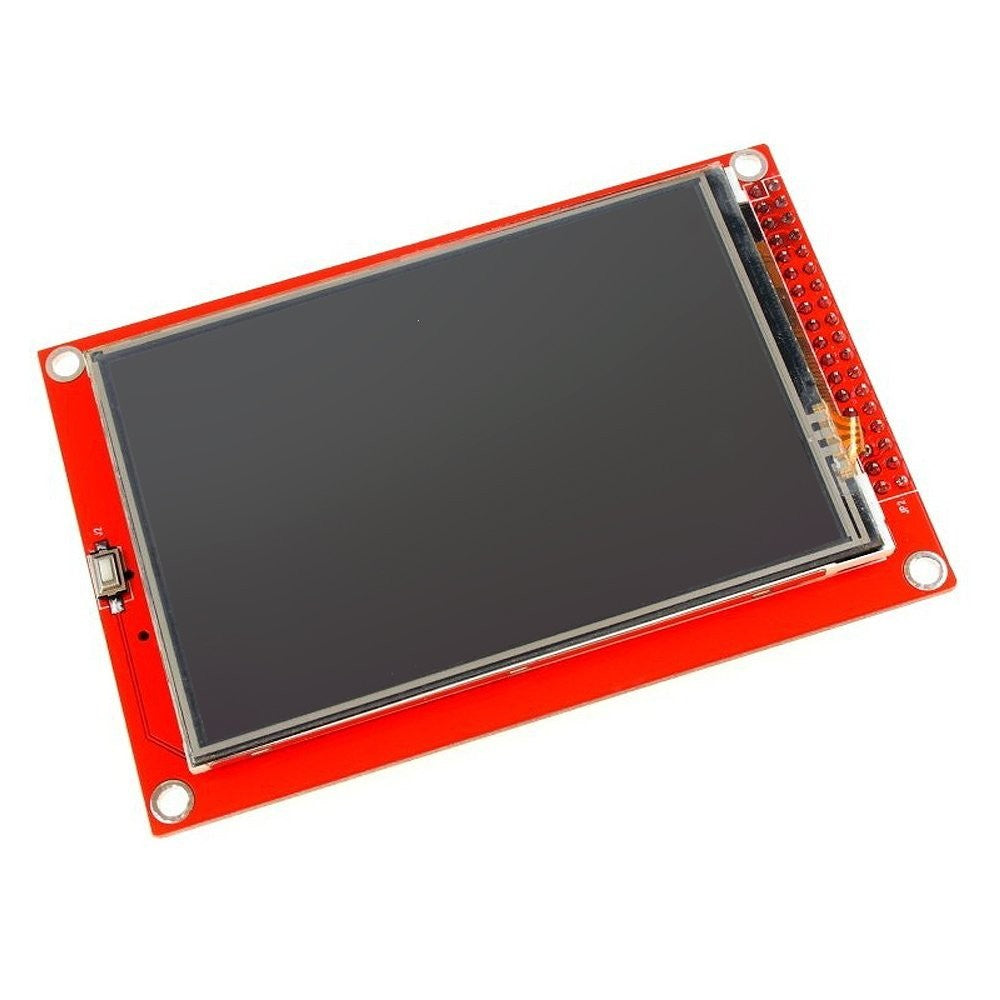

3.5" Inch TFT Touch Screen Module for MEGA 2560 R3

The 3.5" Inch TFT Touch Screen Module for MEGA 2560 R3 is a colour TFT display with a touch panel, made to plug straight onto an Arduino Mega 2560 board. With a 3.5-inch screen and 480 × 320 resolution it gives plenty of room for menus, graphs, sensor readings and on-screen buttons, turning a Mega project into a standalone device with its own touch interface.

3.5" Inch TFT Touch Screen Module Specifications

• Screen size: 3.5 inch
• Resolution: 480 × 320 pixels
• Display type: colour TFT LCD
• Touch: resistive touch panel
• Fits: Arduino Mega 2560 R3, plugs onto the board headers
• Interface: parallel, through the Mega 2560 pin headers

3.5" Inch TFT Touch Screen Module Applications

• Touch control panels and machine interfaces
• Data loggers and sensor dashboards
• Menus for CNC, 3D printer and test equipment projects
• Games and graphics demos
• Classroom Arduino GUI projects

What's in the Box

• 1 × 3.5-inch TFT touch screen module for Mega 2560

Tip: Run an ID-reading sketch, such as the one in the MCUFRIEND_kbv library, to find the display controller before choosing a library. Calibrate the touch panel once with the touch library's calibration example so taps line up with the graphics.
