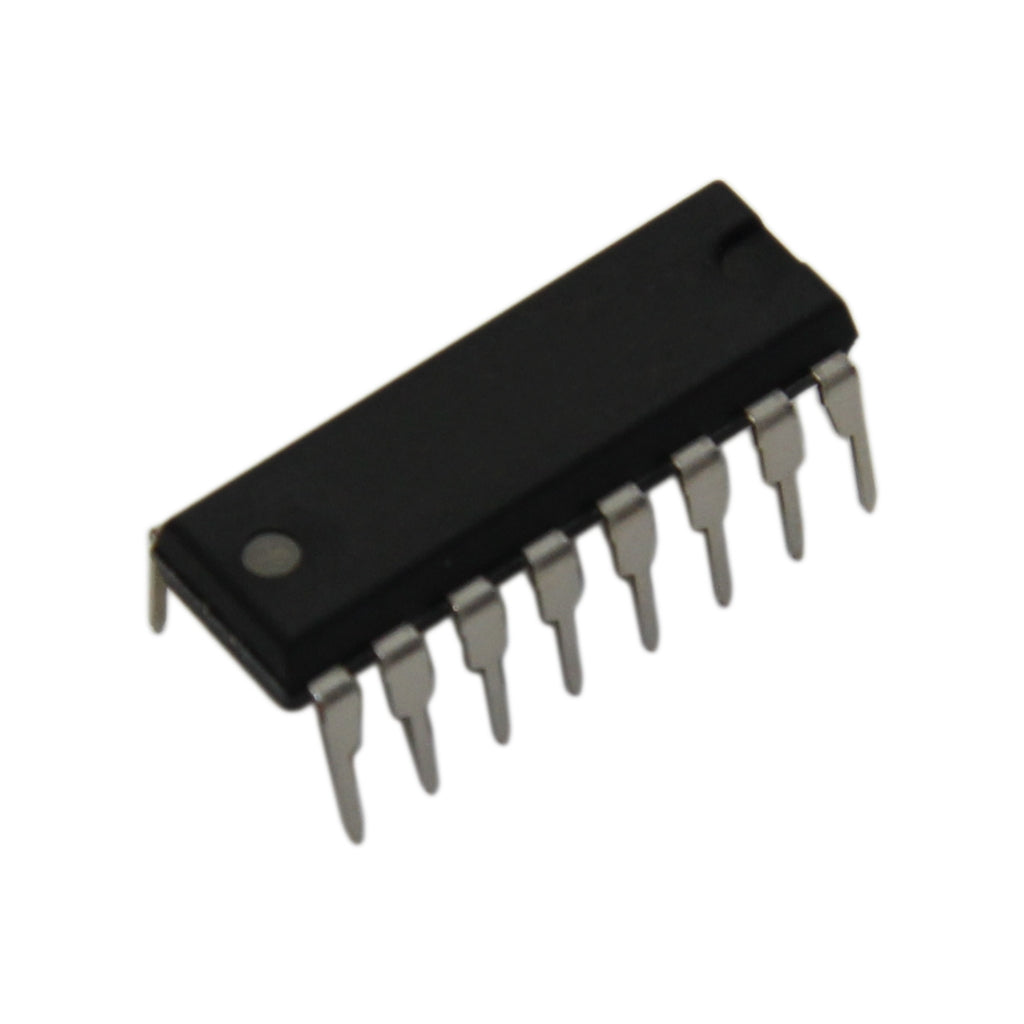

3:8 Decoder 74138

Part no. 10380888

$0.35
In stock
  • Pick up in Msaitbeh, Beirut
  • Delivery across Lebanon
  • Bulk and education pricing on request
Description

The 3:8 Decoder 74138 is a 74-series 3-to-8 line decoder and demultiplexer IC. It reads a 3-bit binary code on inputs A, B and C and pulls exactly one of its eight outputs, Y0 to Y7, low while the others stay high. Three enable inputs make it easy to cascade chips into larger decoders, which is why it is widely used for memory and I/O address decoding.

3:8 Decoder 74138 Specifications

  • Function: 3-to-8 line decoder / 1-to-8 demultiplexer
  • Select inputs: A, B, C (pins 1, 2, 3)
  • Enable inputs: G1 active high (pin 6), G2A and G2B active low (pins 4 and 5)
  • Outputs: 8, active low (Y0–Y7)
  • Package: 16-pin DIP, through-hole
  • Supply: 5 V, VCC on pin 16 and GND on pin 8

3:8 Decoder 74138 Applications

  • Address decoding for memory and I/O chips in microprocessor circuits
  • Selecting one of eight LEDs, devices or display digits with 3 control lines
  • Demultiplexing one data line to eight outputs by using an enable input as the data input
  • Saving microcontroller pins in Arduino projects
  • Digital logic lab experiments

What's in the Box

  • 1 × 74138 3-to-8 decoder IC

Tip: The outputs only work when G1 is high and G2A and G2B are low, so tie them that way if you do not need the enables. Because the outputs are active low, connect an LED from VCC through a resistor to an output so the selected LED lights.
