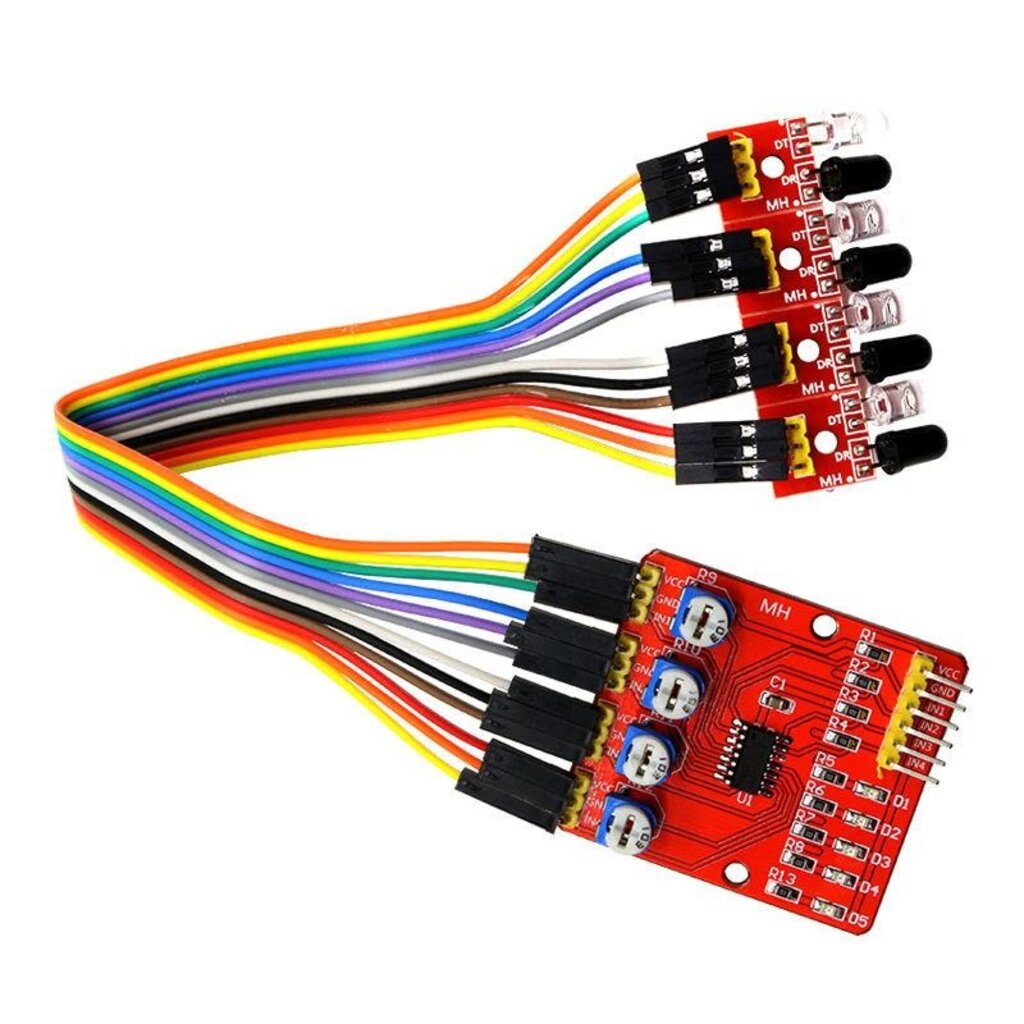

4 Channel Infrared Tracing Module

The 4 Channel Infrared Tracing Module gives a robot four infrared line sensors in one module. Each channel shines infrared light at the floor and measures how much is reflected, so it can tell a black line from a white surface and report it as a digital signal. With four channels, an Arduino or ESP32 robot car can follow lines more smoothly, take sharp turns and detect junctions.

4 Channel Infrared Tracing Module Specifications

• Channels: 4 infrared reflective sensors (IR emitter and receiver)
• Output: one digital signal per channel
• Detection: dark and light surfaces at short range, such as black tape on a white floor
• Controller: works with Arduino, ESP32, Raspberry Pi and other microcontrollers

4 Channel Infrared Tracing Module Applications

• Line-following robot cars
• Robotics competitions with track and junction detection
• Edge and cliff detection on small robots
• Counting objects that pass close to the sensors
• STEM and robotics classes

What's in the Box

• 1 × 4-channel infrared tracing module

Tip: Mount the sensors a few millimetres above the floor and check each channel over the line before running the robot. Bright sunlight contains infrared and can confuse the sensors, so test and tune them indoors first.
