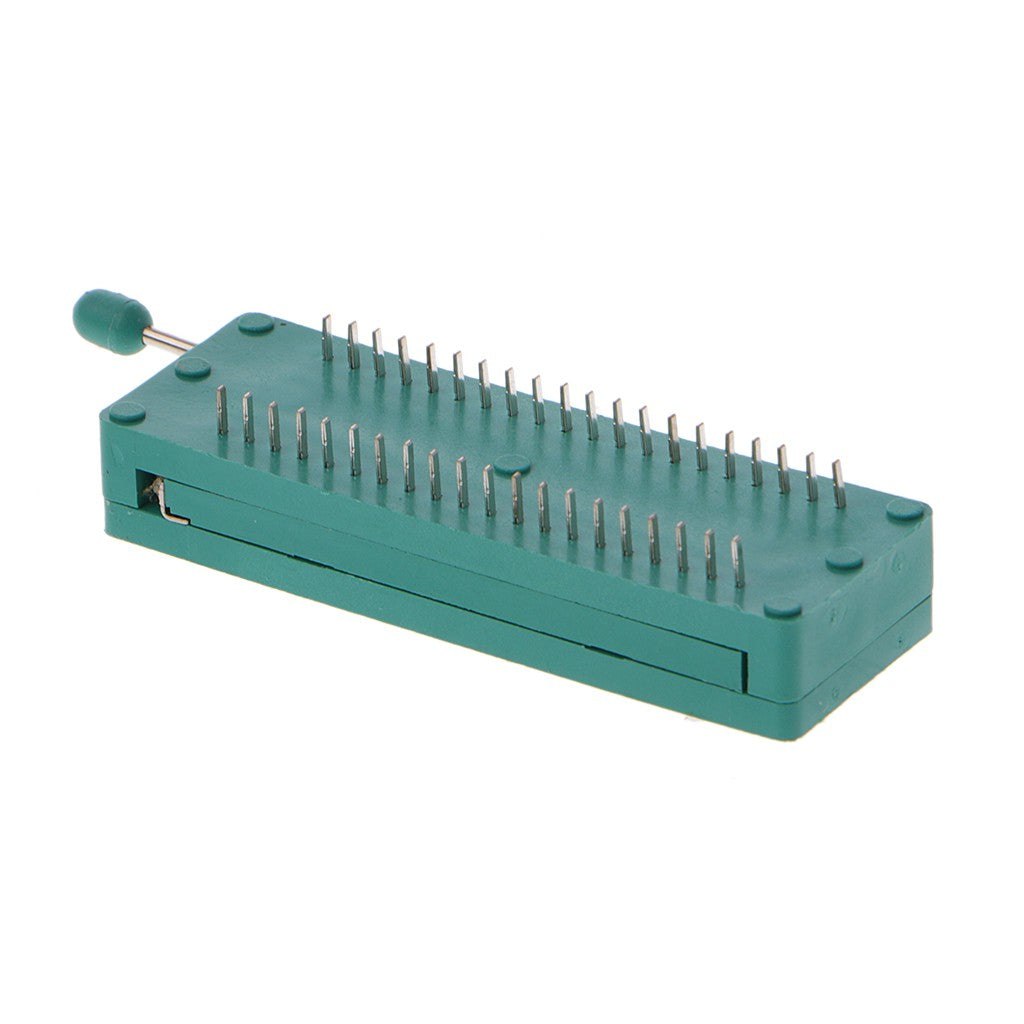

40pin Universal ZIF Socket Test DIP IC

The 40pin Universal ZIF Socket is a zero insertion force (ZIF) test socket for DIP integrated circuits. Lifting the lever opens the contacts so a chip can be dropped in and taken out without bending its pins, and lowering the lever clamps it firmly in place. It is ideal for IC programmers, chip testers and any board where ICs are swapped often.

40pin Universal ZIF Socket Specifications

• Positions: 40, in 2 rows of 20
• Pin pitch: 2.54 mm (0.1 in)
• Accepts: DIP ICs up to 40 pins; the universal type takes both narrow (0.3 in) and wide (0.6 in) packages
• Operation: lever lock, zero insertion force

40pin Universal ZIF Socket Applications

• Programming PIC, AVR and 8051 microcontrollers in DIP packages
• EPROM and EEPROM programmers
• Testing 74-series logic ICs and op-amps
• Test fixtures and frequent chip swapping in labs
• Protecting valuable chips from bent or broken pins

What's in the Box

• 1 × 40-pin universal ZIF socket

Tip: Always lift the lever before inserting or removing a chip, and check the pin 1 orientation against your board's marking. For chips with fewer than 40 pins, place them in the position given in your programmer or tester instructions, then close the lever.
