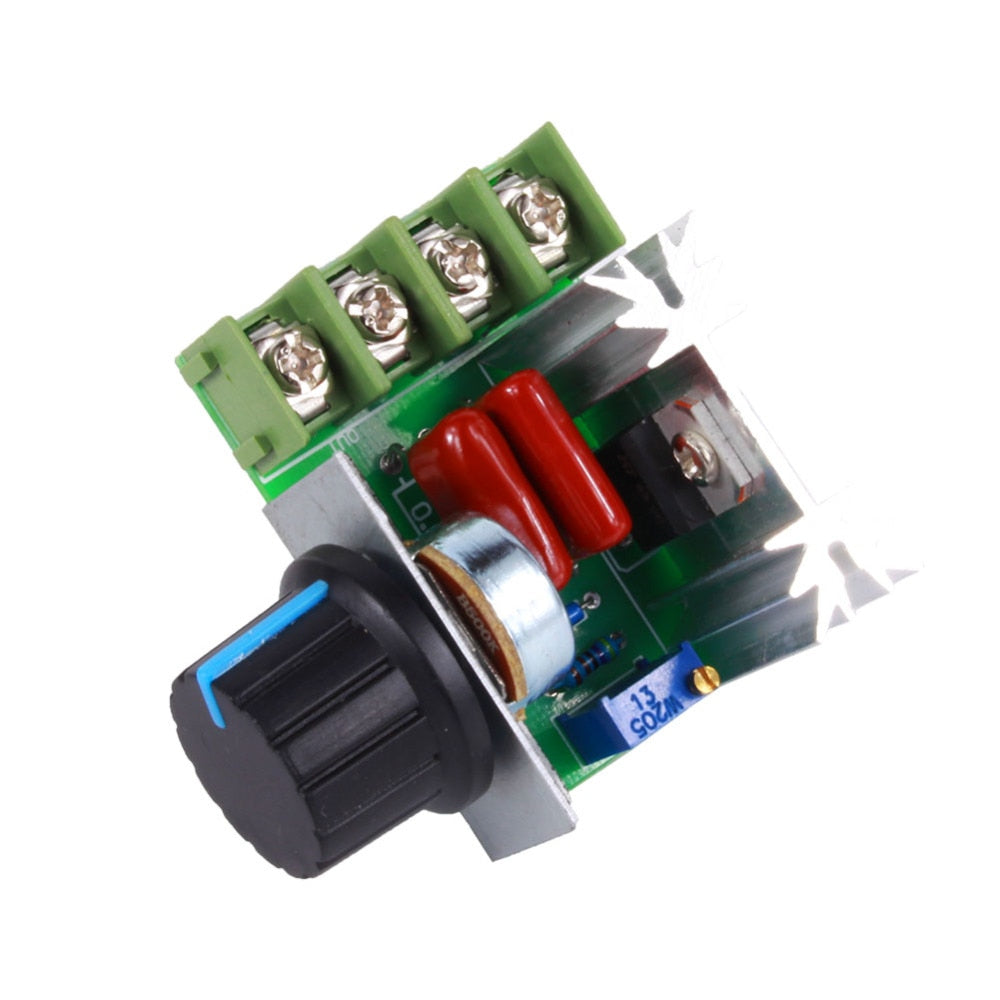

AC Motor Speed Control 2000W PWM

The AC Motor Speed Control 2000W module adjusts the power that reaches a 220 V AC load, using a high-power SCR and an onboard potentiometer. Turn the knob to slow down a universal motor such as a drill or grinder, dim an incandescent lamp or set the heat of a heating element, for loads of up to 2000 W. It is a compact, low-cost regulator for workshop and DIY projects.

AC Motor Speed Control 2000W Specifications

• Supply: 220 V AC mains, 50/60 Hz
• Maximum load: 2000 W
• Output: adjustable from about 0 V to 220 V AC
• Control method: SCR phase control
• Adjustment: onboard potentiometer knob

AC Motor Speed Control 2000W Applications

• Speed control of universal (brushed) AC motors in drills, grinders and small fans
• Dimming incandescent and halogen lamps
• Temperature control of heaters, hot plates and soldering irons
• Regulating small electric furnaces and water heaters in DIY projects

What's in the Box

• 1 × AC speed controller module, 2000 W

Tip: This module works at mains voltage and its parts are exposed, so wire it with the power off, fit it in an insulated enclosure and never touch it while it is connected. Do not use it with LED drivers, chargers or electronic equipment, and keep a good margin below 2000 W for long running.
