BC327 Pack 5pcsPNP 10V 50mA

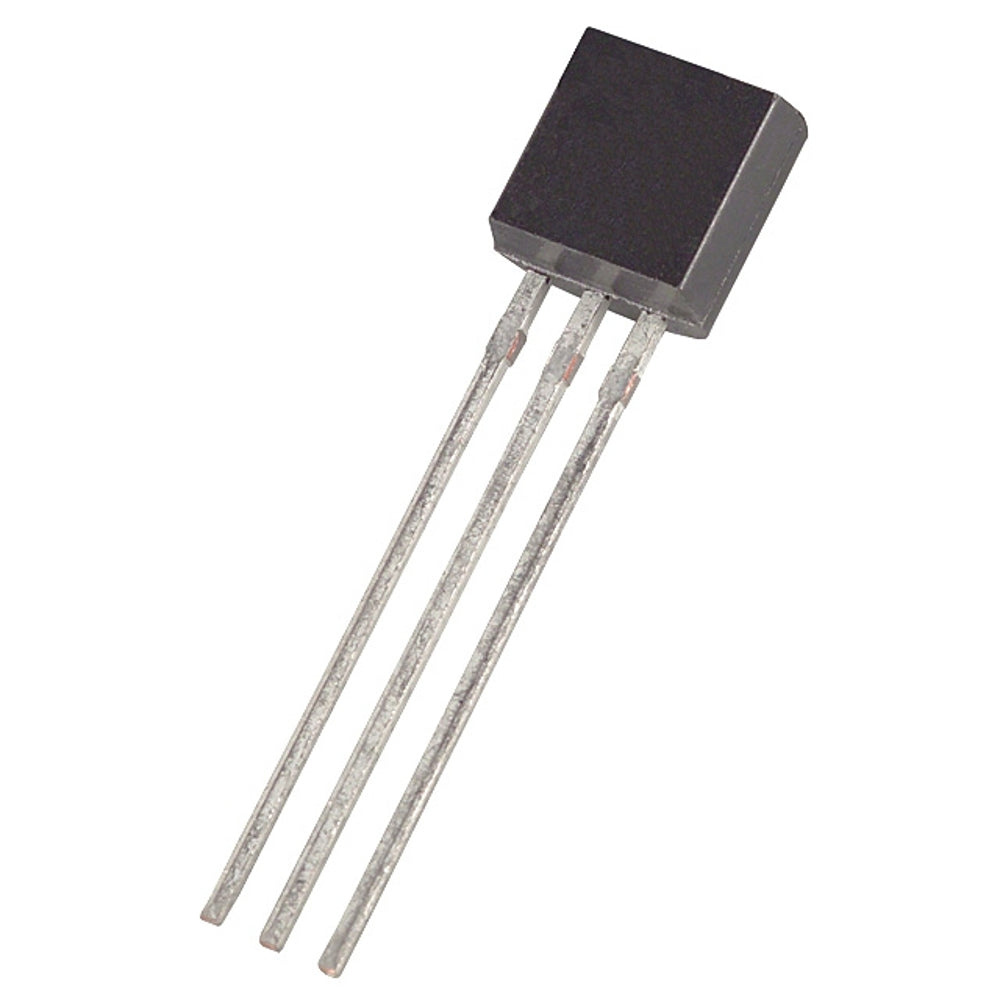

The BC327 is a general-purpose PNP bipolar transistor in a TO-92 package, sold in a pack of 5. It handles up to 45 V and 800 mA of collector current, much more than a BC557, so it can switch relays, small motors, LED groups and buzzers from the positive side of the supply, or work in push-pull and amplifier stages with its NPN complement, the BC337.

BC327 Specifications

• Type: PNP bipolar junction transistor
• Collector-emitter voltage (VCEO): −45 V
• Collector-base voltage (VCBO): −50 V
• Emitter-base voltage: −5 V
• Collector current (IC): −800 mA maximum
• Power dissipation: 625 mW
• DC current gain (hFE): 100 to 630, depending on the gain grade
• Package: TO-92
• NPN complement: BC337

BC327 Applications

• High-side switching of loads
• Driving relays, buzzers and LED groups
• Push-pull output stages with the BC337
• Small-signal amplifiers and current sources
• Electronics labs and prototyping

What's in the Box

• 5 × BC327 PNP transistors

Tip: For a PNP switch, connect the emitter to the positive supply and the load between the collector and ground, then pull the base low through a resistor of about 1 kΩ to turn it on. If the load supply is higher than your microcontroller voltage, drive the base through a small NPN transistor. The pinout is usually C-B-E, but check the datasheet of your part.
