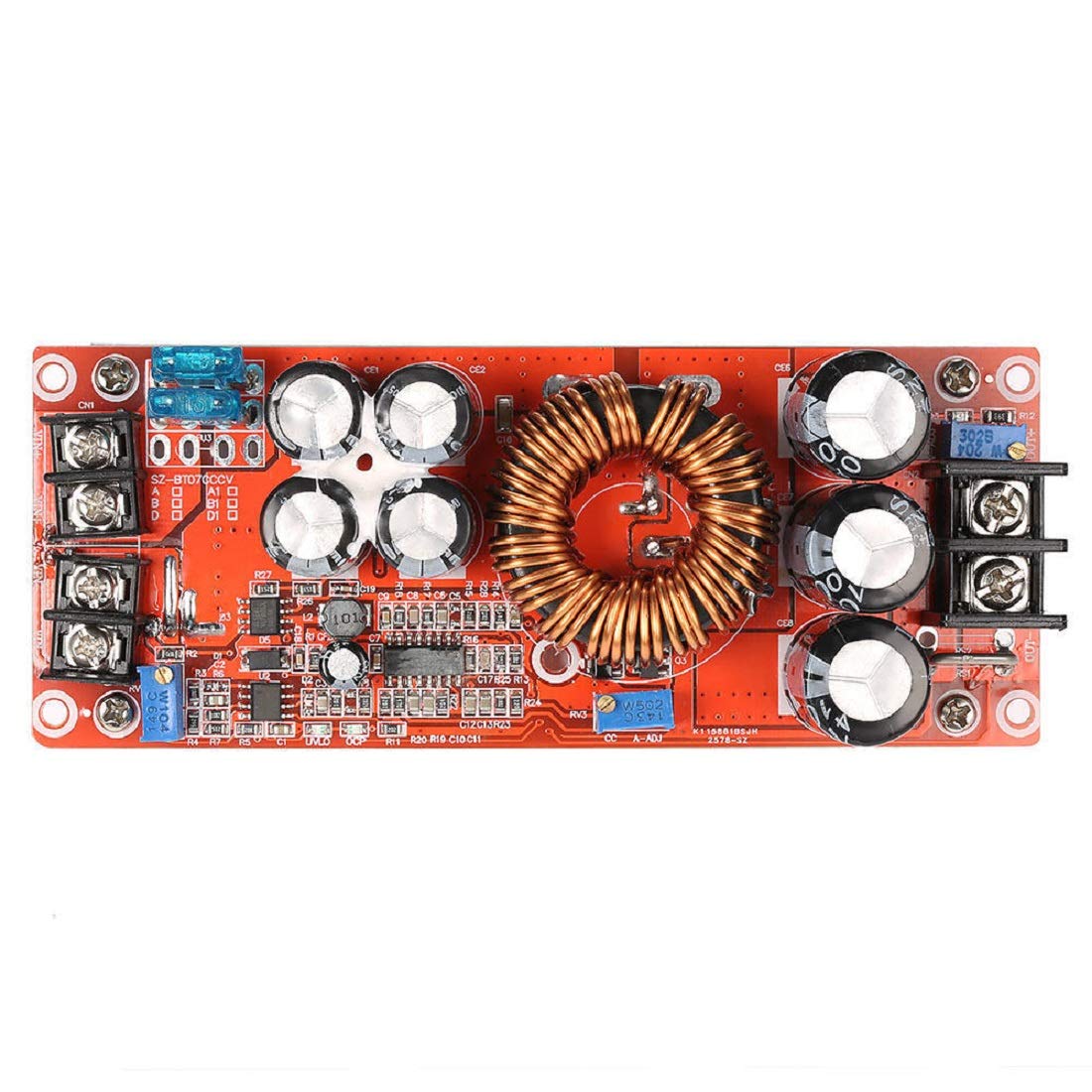

Boost Converter - Step up voltage regulator 1200W

The Boost Converter - step up voltage regulator 1200W is a high-power DC-DC module that converts a lower DC input voltage into a higher, adjustable DC output. It is used to run 24 V, 36 V or 48 V equipment from a 12 V battery, to charge higher-voltage battery packs and to build bench supplies for high-power projects.

Boost Converter Specifications

• Type: non-isolated DC-DC step-up (boost) converter
• Rated power: 1200 W maximum
• Output: higher than the input voltage, set with an on-board potentiometer
• Typical ratings for 1200 W modules of this type: 8–60 V input, 12–83 V output, up to 20 A input current (check the label on your module)
• Cooling: needs good airflow, and a fan at high continuous loads

Boost Converter Applications

• Running 24 V, 36 V or 48 V devices from a 12 V battery
• Charging higher-voltage battery packs from a lower-voltage source
• Powering LED strips, DC motors and inverters at a higher voltage
• Solar and vehicle power projects
• High-power lab and workshop supplies

What's in the Box

• 1 × 1200 W boost converter module

Tip: The 1200 W rating is only reachable at a high input voltage, because the input current is the limit; at 12 V input the usable power is much lower. A boost converter cannot block a short circuit on its output, so fit a fuse on the input and set the output voltage before connecting the load.
