Decade Counter Divider CD4026

The Decade Counter Divider CD4026 is a CMOS counter IC that counts clock pulses from 0 to 9 and decodes the count straight into seven-segment outputs. It drives a common-cathode 7-segment LED display without a separate decoder chip, and its carry output lets you chain several CD4026 chips to build multi-digit counters, so it is a classic part for digital counters, scoreboards and electronics lessons.

Decade Counter Divider CD4026 Specifications

• Function: decade (divide-by-10) counter with 7-segment decoded outputs
• Logic family: CMOS 4000 series
• Supply voltage: 3–18 V
• Inputs: clock, clock inhibit, reset and display enable
• Outputs: segments a to g, carry out, display enable out and ungated C segment

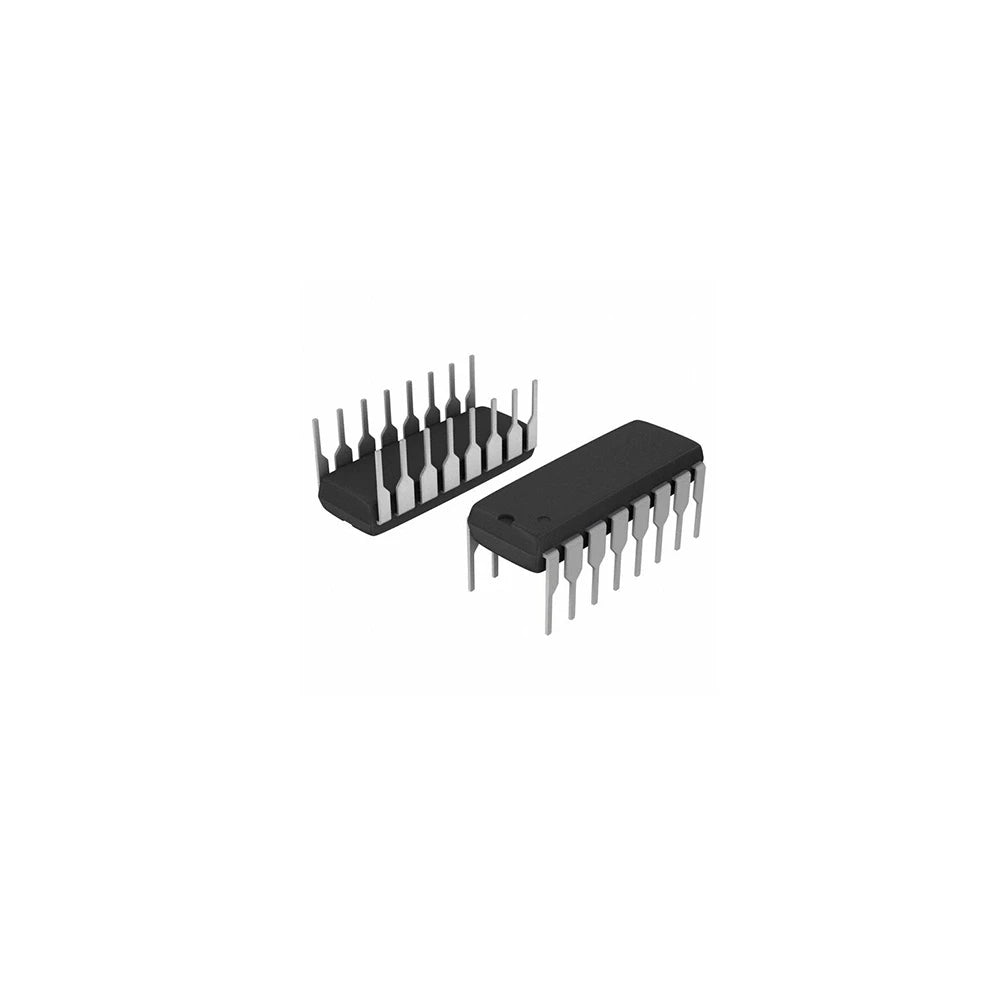

• Package: 16-pin DIP

Decade Counter Divider CD4026 Applications

• Event and pulse counters with a 7-segment display
• Digital dice, scoreboards and lap counters
• Multi-digit counters by cascading the carry output
• Dividing a clock frequency by 10
• Digital electronics lessons with a 555 timer as the clock

What's in the Box

• 1 × CD4026 decade counter IC

Tip: For normal counting, tie the reset and clock inhibit pins to GND and the display enable input to VDD, and never leave CMOS inputs floating. Add a resistor of a few hundred ohms in series with each segment to limit the LED current.
