DHT21/AM2301 Capacitive Digital Temperature & Humidity Sensor

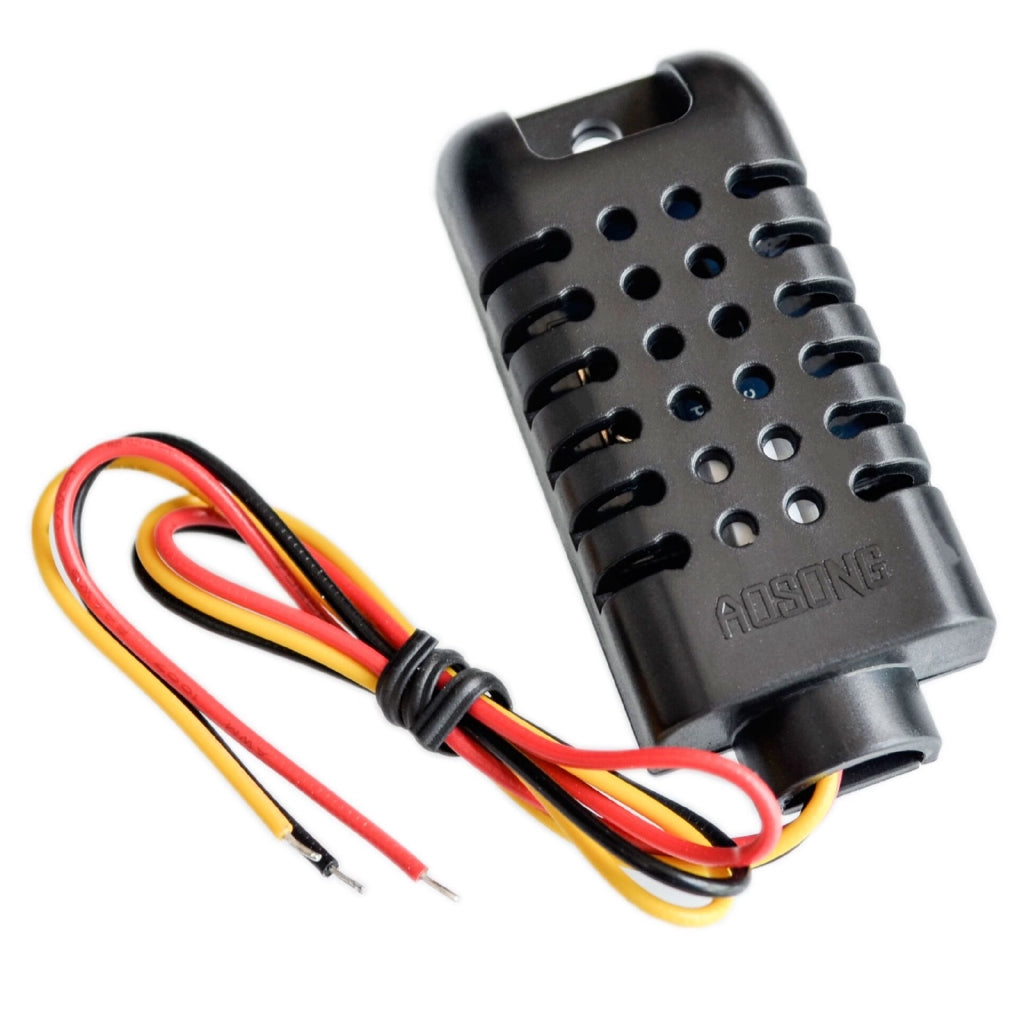

The DHT21/AM2301 is a capacitive digital temperature and humidity sensor in a plastic housing with wire leads, ready to mount on a wall or inside an enclosure. It sends calibrated readings over a single data wire, so it connects to an Arduino, ESP32 or Raspberry Pi with only one pin. It covers a wider range than the DHT11, making it suitable for greenhouses, incubators and weather stations.

DHT21/AM2301 Specifications

• Sensing element: capacitive polymer humidity sensor plus a temperature sensor
• Humidity range: 0–100% RH
• Humidity accuracy: ±3% RH (typical)
• Temperature range: −40 to 80 °C
• Resolution: 0.1% RH and 0.1 °C
• Output: single-bus digital signal
• Supply voltage: 3.3–5 V DC
• Sampling period: about 2 seconds
• Connection: 3 wires (power, data, ground)

DHT21/AM2301 Applications

• Greenhouse and indoor climate monitoring
• Egg incubators and mushroom growing rooms
• Home weather stations and smart thermostats
• Server room and storage humidity alarms
• IoT data logging with ESP32 or ESP8266

What's in the Box

• 1 × DHT21/AM2301 temperature and humidity sensor

Tip: Add a 4.7 kΩ to 10 kΩ pull-up resistor between the data wire and VCC, and read the sensor no more than once every 2 seconds. In the Arduino DHT library, choose the DHT21 sensor type.
