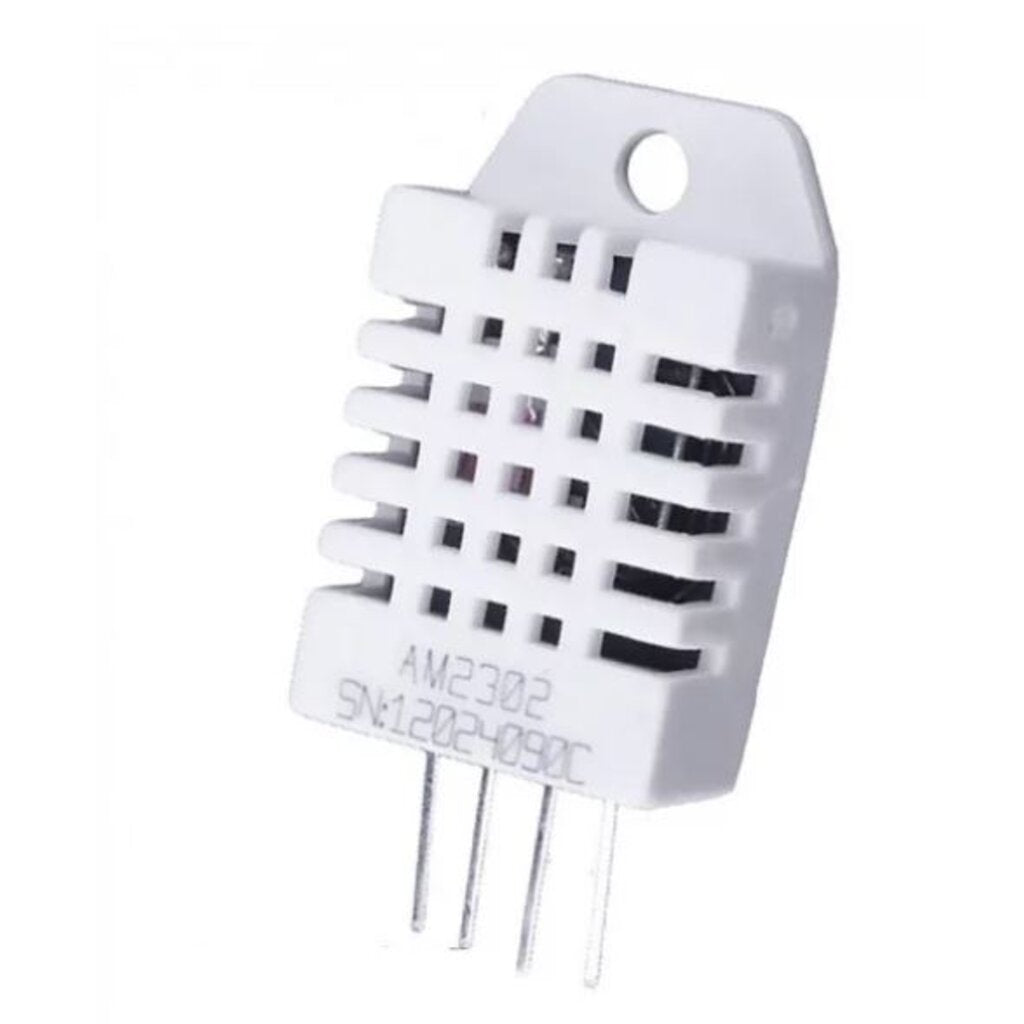

DHT22/AM2302 Digital Temperature & Humidity Sensor

The DHT22/AM2302 is a digital temperature and humidity sensor that sends calibrated readings over a single data wire, so it needs only one microcontroller pin. It is more accurate and has a wider range than the DHT11, which makes it a popular choice for weather stations, greenhouse controllers and IoT projects with Arduino, ESP32, ESP8266 and Raspberry Pi.

DHT22/AM2302 Specifications

• Supply voltage: 3.3–6 V DC
• Humidity range: 0–100% RH
• Humidity accuracy: ±2% RH typical
• Temperature range: −40 to 80 °C
• Temperature accuracy: ±0.5 °C
• Resolution: 0.1% RH and 0.1 °C
• Sampling period: 2 seconds minimum
• Output: single-wire digital signal

DHT22/AM2302 Applications

• Home and outdoor weather stations
• Greenhouse, incubator and terrarium control
• Server room and HVAC monitoring
• IoT data logging with ESP32 and ESP8266

What's in the Box

• 1 × DHT22/AM2302 temperature and humidity sensor

Tip: Add a 4.7–10 kΩ pull-up resistor between the data line and VCC if your version does not already have one, and read the sensor no more than once every 2 seconds. The DHT sensor library in the Arduino IDE handles the timing for you.
