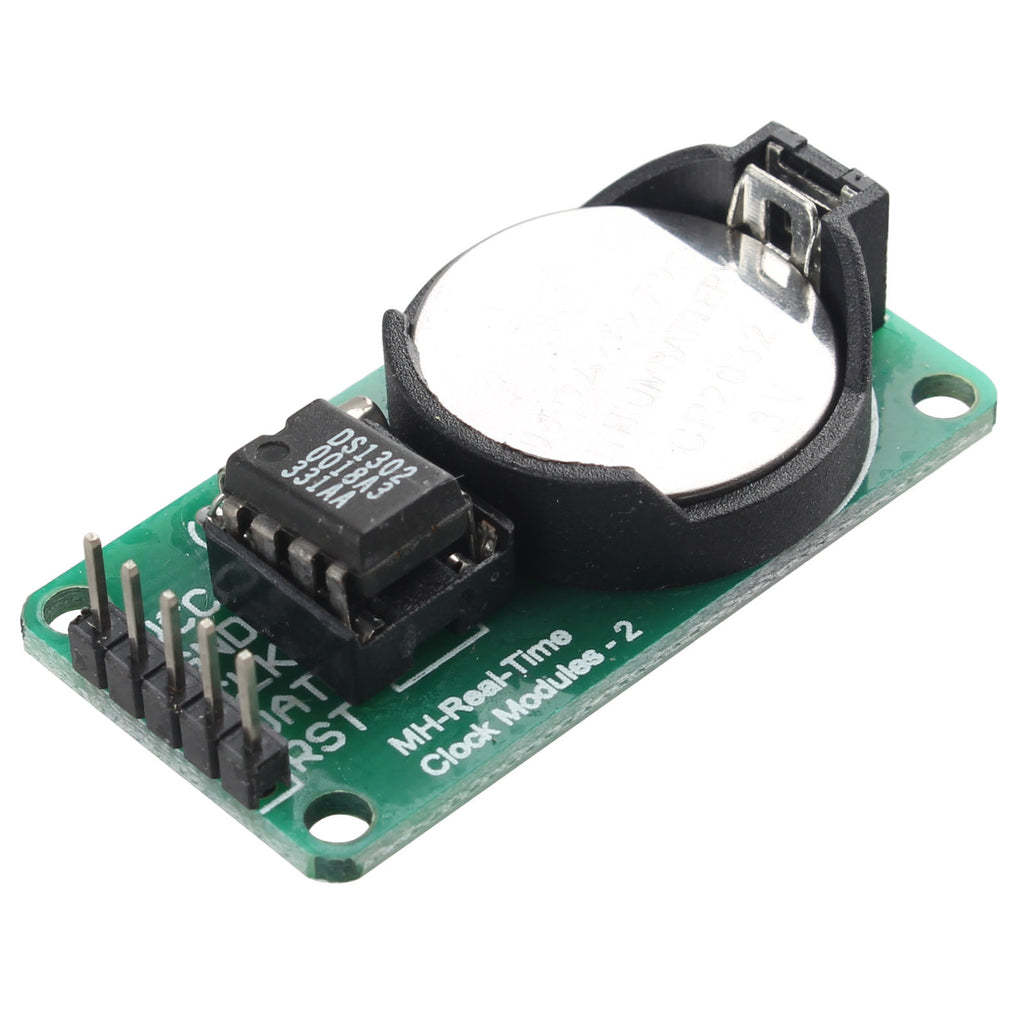

DS1302 RTC Real Time Clock Module with Battery

The DS1302 RTC Real Time Clock Module keeps track of the time and date for your Arduino, ESP32 or other microcontroller project, and comes with a backup battery so the clock keeps running when the main power is off. It is based on the DS1302 timekeeping chip with a 32.768 kHz crystal and talks to the microcontroller over a simple 3-wire serial interface.

DS1302 RTC Real Time Clock Module Specifications

• Chip: DS1302 trickle-charge timekeeping IC
• Keeps: seconds, minutes, hours, date, month, day of the week and year, with leap-year compensation up to 2100
• Time format: 12-hour (AM/PM) or 24-hour
• Interface: 3-wire serial (clock, data and reset/chip-enable lines), not I2C
• Operating voltage: 2.0 V to 5.5 V
• Extra memory: 31 bytes of battery-backed RAM
• Backup: battery included to keep time during power loss

DS1302 RTC Real Time Clock Module Applications

• Clocks and timers with LCD or 7-segment displays
• Data loggers that time-stamp sensor readings
• Scheduled control of lights, pumps and relays
• Alarm and reminder projects
• Learning serial communication with microcontrollers

What's in the Box

• 1 × DS1302 real time clock module with backup battery

Tip: Set the time once from your code, then remove the set-time line so the clock is not reset at every restart. Keep the DS1302 trickle charger disabled unless the backup battery is rechargeable. Libraries such as RtcDS1302 make it easy to use with Arduino.
