Dual OP-Amp LM358P

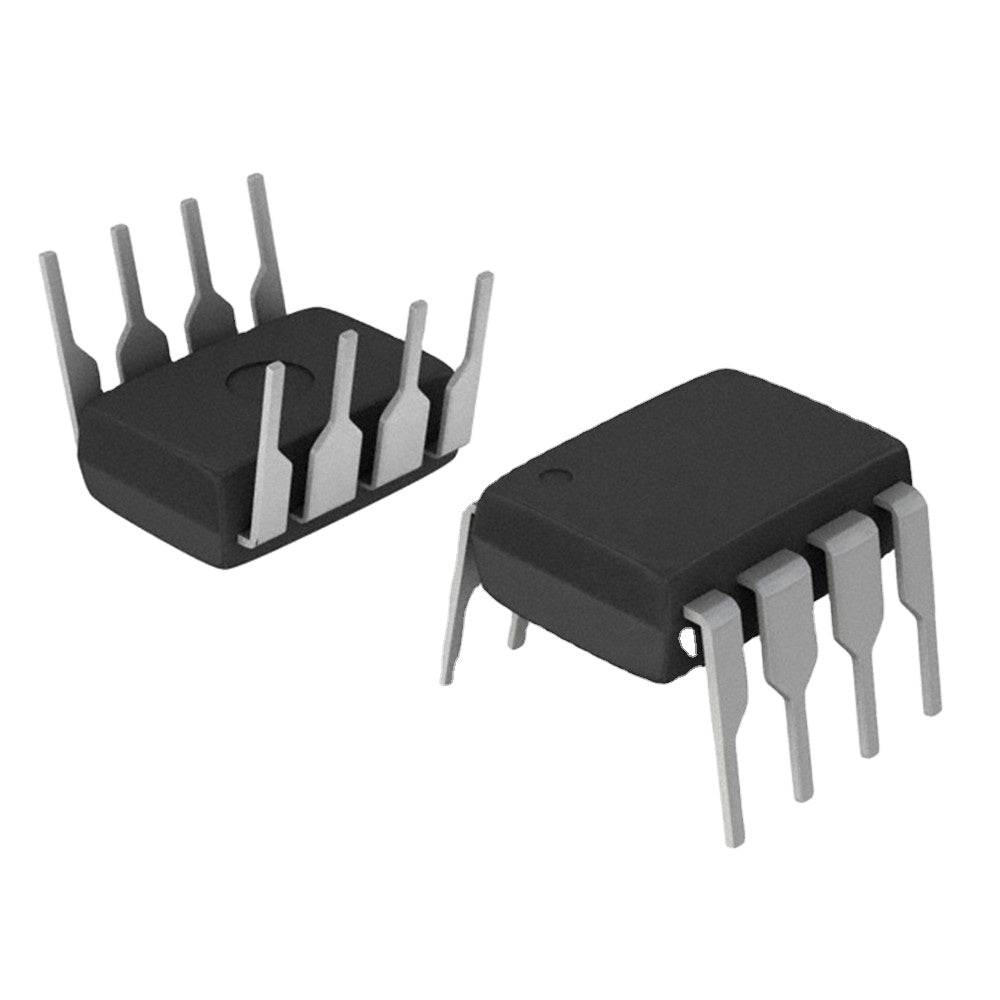

The Dual OP-Amp LM358P contains two independent, internally compensated operational amplifiers in an 8-pin DIP package. It runs from a single supply as low as 3 V, its input range includes ground and it draws very little current, which makes it one of the most popular op-amps for battery, sensor and Arduino projects.

Dual OP-Amp LM358P Specifications

• Amplifiers: 2 independent op-amps, internally compensated
• Supply voltage: 3 V to 32 V single, or ±1.5 V to ±16 V dual
• Input common-mode range: includes ground (0 V)
• Output swing: from near 0 V up to about VCC − 1.5 V
• Unity-gain bandwidth: about 0.7 to 1 MHz
• DC voltage gain: about 100 dB
• Supply current: about 0.7 mA
• Package: 8-pin DIP (P suffix)
• Pinout: 1 OUT1, 2 IN1−, 3 IN1+, 4 GND, 5 IN2+, 6 IN2−, 7 OUT2, 8 VCC

Dual OP-Amp LM358P Applications

• Amplifying sensor signals (temperature, light, current sense) for Arduino and ESP32
• Comparators and level detectors on a single supply
• Active filters and low-frequency audio preamps
• Battery chargers and power supply control loops
• Electronics labs and student projects

What's in the Box

• 1 × LM358P dual op-amp IC

Tip: The output cannot reach the positive rail; on a 5 V supply it tops out at about 3.5 V, so use a higher supply if you need a wider swing. Place a 100 nF capacitor between pins 8 and 4 close to the chip.
