E18-D80NK Adjustable Infrared Sensor Switch 3-80cm IR yellow

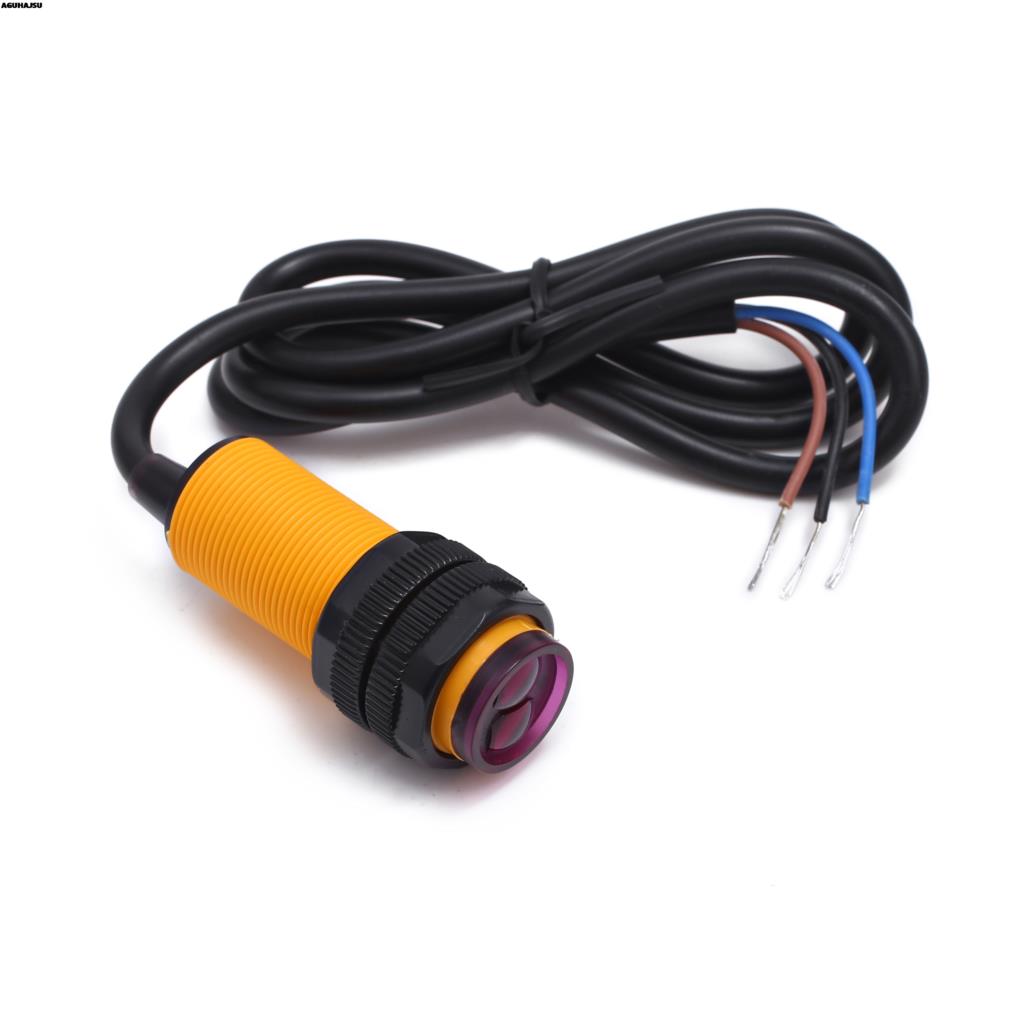

The E18-D80NK Adjustable Infrared Sensor switch is a diffuse-reflection infrared proximity sensor in a cylindrical threaded housing. It sends out infrared light and switches its digital output when an object reflects the light back, with a detection distance you can set from 3 cm to 80 cm using the adjustment screw at the back. It is a favourite for obstacle-avoiding robots, smart cars and object counting.

E18-D80NK Adjustable Infrared Sensor Specifications

• Sensor type: infrared, diffuse reflection (transmitter and receiver in the same head)
• Detection range: 3–80 cm, adjustable with the rear screw
• Supply voltage: 5 V DC
• Current consumption: about 25–100 mA
• Output: digital, NPN normally open (goes LOW when an object is detected)
• Response time: under 2 ms
• Wires: 3, commonly brown = +5 V, blue = GND, black = signal
• Housing colour: yellow

E18-D80NK Adjustable Infrared Sensor Applications

• Obstacle avoidance for robot cars and smart car kits
• Counting objects on conveyors and production lines
• Touch-free triggers for dispensers, hand dryers and doors
• Presence detection in sorting, vending and security projects
• Arduino and ESP32 school and university projects

What's in the Box

• 1 × E18-D80NK infrared sensor switch with attached 3-wire cable

Tip: The output is an NPN transistor, so add a 10 kΩ pull-up resistor to your board's logic voltage (5 V for Arduino Uno, 3.3 V for ESP32) or use INPUT_PULLUP. The range depends on the object: dark or shiny surfaces are detected at shorter distances than white ones.
