Esplora Joystick Photosensitive Sensor,Support LCD

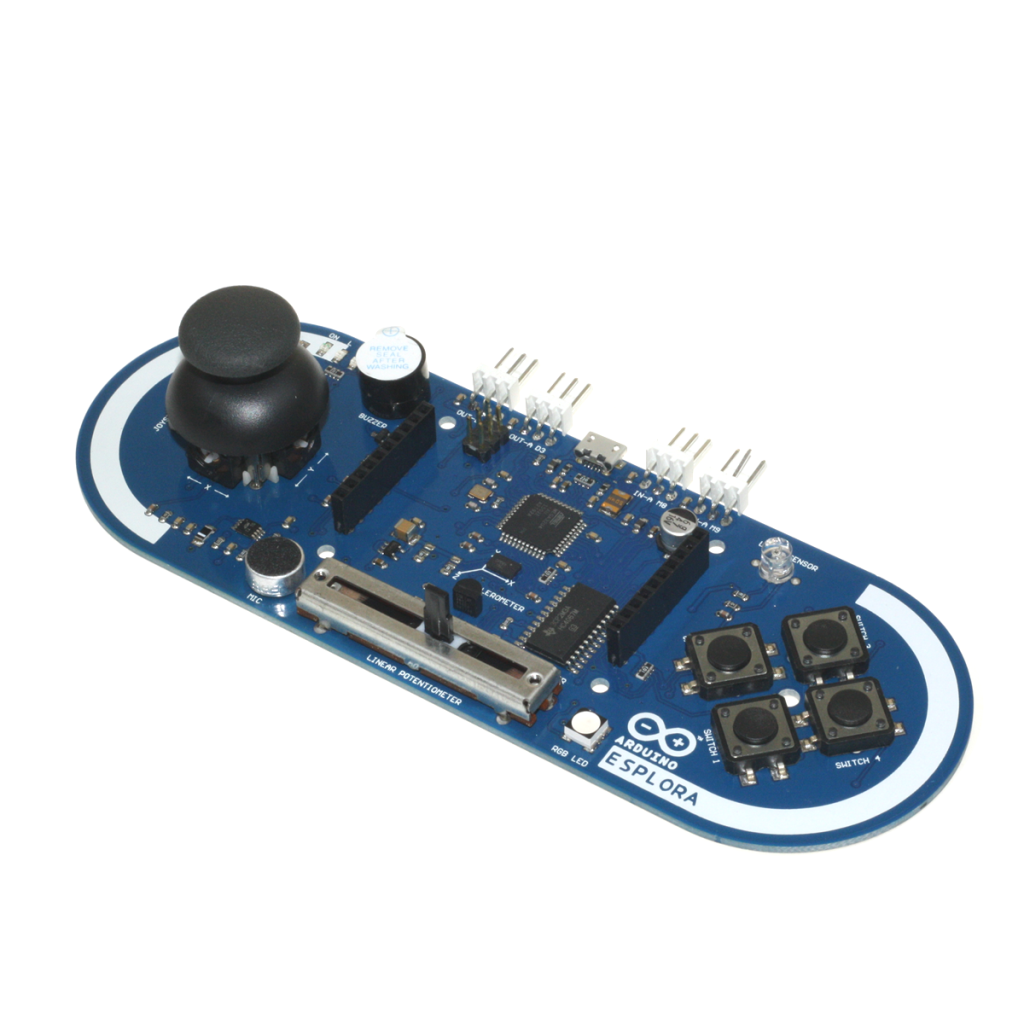

The Esplora Joystick Photosensitive Sensor board is a complete Arduino-compatible microcontroller board, derived from the Arduino Leonardo and shaped like a game controller. It carries an analog joystick, four buttons, a light sensor and many other inputs and outputs on one board, so beginners can start coding interactive projects without any wiring, and it has a socket for an optional colour TFT LCD.

Esplora Joystick Photosensitive Sensor Specifications

• Microcontroller: ATmega32U4, 16 MHz
• Operating voltage: 5 V
• Memory: 32 KB flash (4 KB used by the bootloader), 2.5 KB SRAM, 1 KB EEPROM
• Connection: micro USB; can act as a USB mouse or keyboard
• Inputs: 2-axis analog joystick with centre push-button, 4 push-buttons, linear slider, light sensor, temperature sensor, 3-axis accelerometer and microphone
• Outputs: buzzer and RGB LED
• Expansion: 2 TinkerKit inputs, 2 TinkerKit outputs and a TFT display socket

Esplora Joystick Photosensitive Sensor Applications

• Learning Arduino programming with the Esplora library
• Custom game controllers, USB mice and keyboards for a PC
• Reaction games, sound and music experiments
• Measuring light and temperature in science lessons

What's in the Box

• 1 × Esplora joystick and sensor board (TFT screen sold separately)

Tip: In the Arduino IDE select Arduino Esplora as the board and include Esplora.h to read the joystick, buttons and sensors with simple commands such as Esplora.readJoystickX(). Add the 1.8 inch TFT LCD for Esplora to show graphics.
