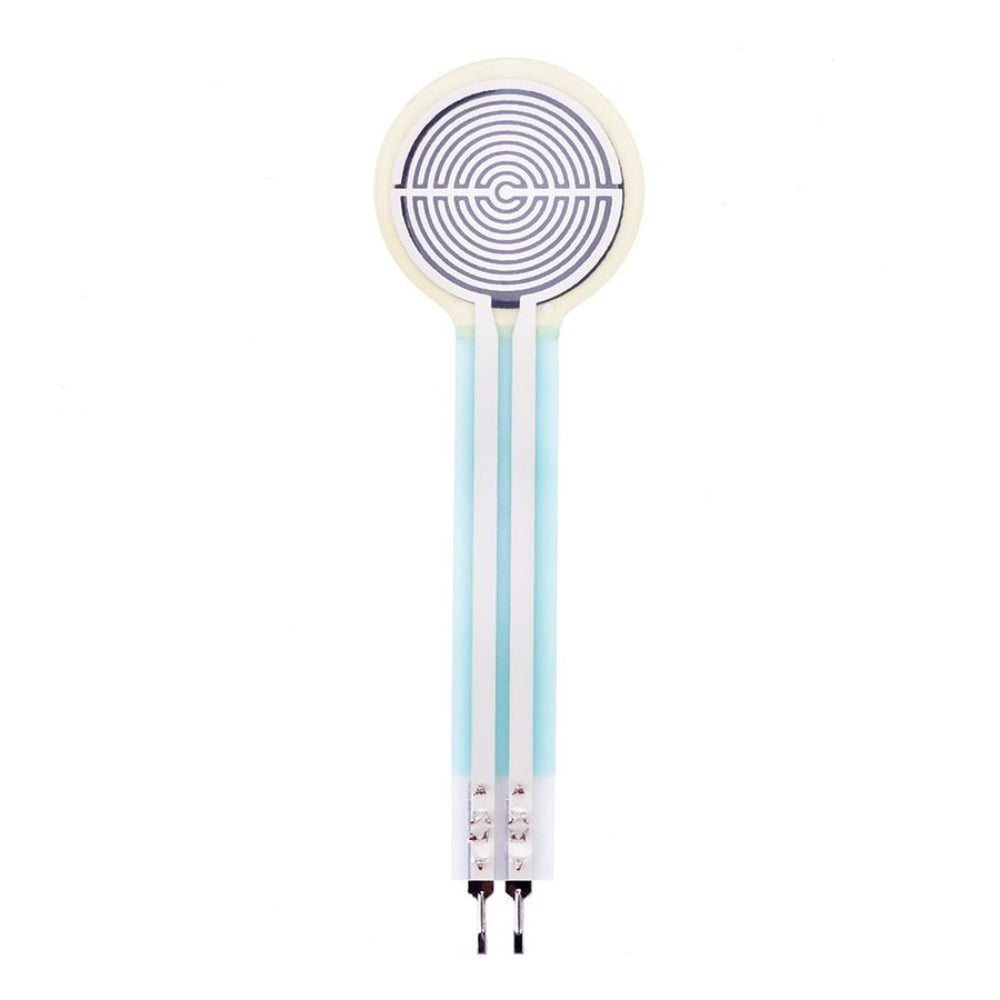

Resistive Membrane Pressure Sensor FSR402 Long Leg 10KG

The Resistive Membrane Pressure Sensor FSR402 Long Leg 10KG is a thin force-sensitive resistor (FSR) with a round sensing area and a long tail. Its resistance is very high when nothing presses on it and falls as you press harder, so it is an easy way to detect touch, squeeze or weight up to about 10 kg with an Arduino or ESP32 analog input.

Pressure Sensor FSR402 Specifications

• Type: resistive membrane force-sensitive resistor (FSR)
• Model: FSR402, round sensing area
• Force range: up to 10 kg
• Behaviour: resistance decreases as the applied force increases
• No-load resistance: very high (megaohm range)
• Lead style: long tail (long leg) with 2 pins
• Form: thin, flexible film

Pressure Sensor FSR402 Applications

• Detecting presence on seats, beds or mats
• Touch and squeeze controls for robots and toys
• Musical instruments and drum pads
• Measuring grip force in robotics and wearable projects

What's in the Box

• 1 × FSR402 resistive membrane pressure sensor, long leg

Tip: Wire the sensor as a voltage divider with a 10 kΩ resistor to ground and read the middle point with an analog pin. An FSR gives a relative reading, not an exact weight; for accurate weighing use a load cell with an HX711 amplifier. Avoid bending the sensor sharply near its pins.
