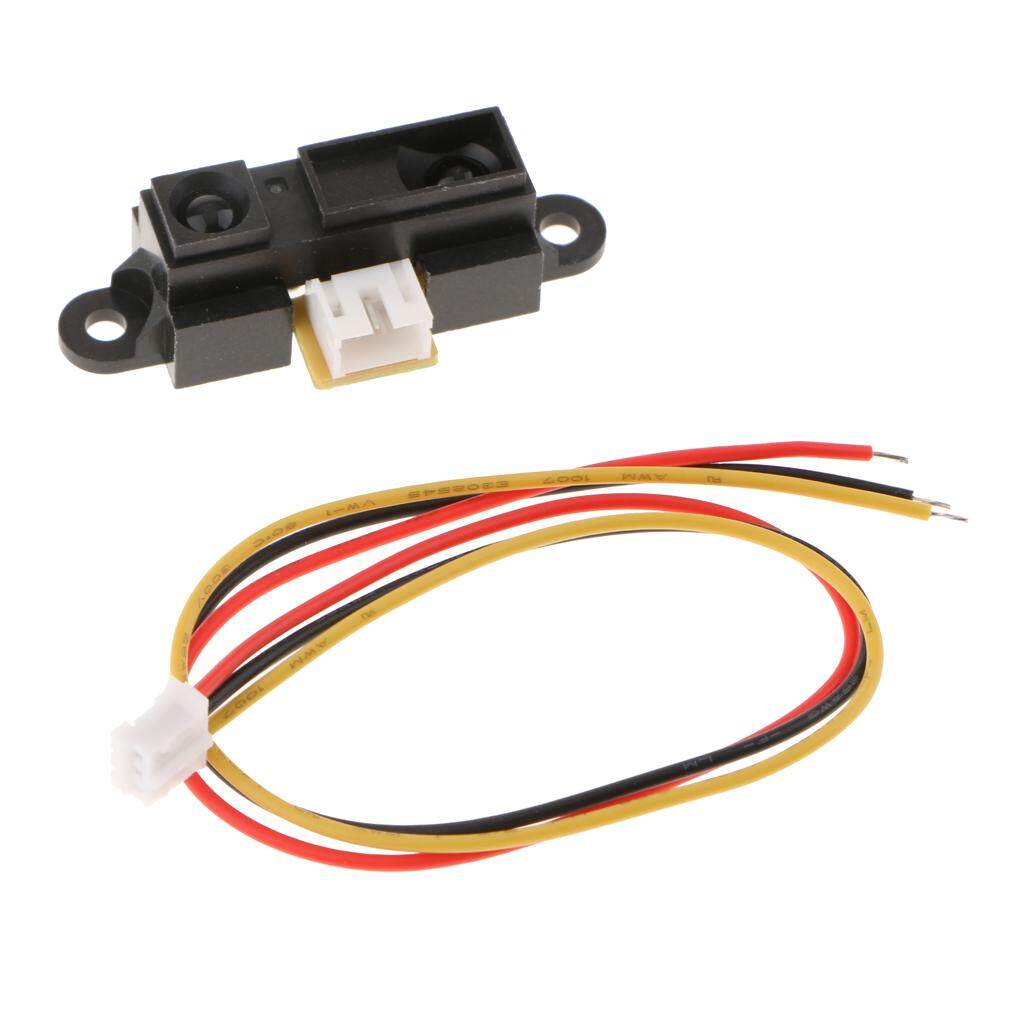

GP2Y0A02YK0F 20-150cm IR distance sensor + Cable

The GP2Y0A02YK0F 20-150cm IR distance sensor measures how far away an object is, from 20 cm up to 150 cm, and outputs an analog voltage that any Arduino or ESP32 analog pin can read. It works by infrared triangulation: an IR LED sends out a beam and a position-sensitive detector measures the angle of the reflected light, so the colour of the target has little effect on the reading. A connection cable is included.

GP2Y0A02YK0F IR Distance Sensor Specifications

• Measuring range: 20–150 cm
• Measuring method: infrared triangulation (IR LED and position-sensitive detector)
• Output: analog voltage, higher when the object is closer (non-linear)
• Supply voltage: 4.5–5.5 V
• Average current: about 33 mA
• Update period: about 38 ms
• Connections: 3 (Vo, GND, Vcc), with the included cable

GP2Y0A02YK0F IR Distance Sensor Applications

• Obstacle avoidance and wall following in robots
• Detecting people or objects in front of a display or door
• Measuring the level in bins and tanks
• Interactive installations and robotics competitions

What's in the Box

• 1 × GP2Y0A02YK0F IR distance sensor
• 1 × connection cable

Tip: The sensor draws current in pulses, so place a 10 µF or larger capacitor across Vcc and GND close to it to keep readings stable. The output is not linear: use a lookup table or a curve-fit formula to convert voltage to distance, and remember that objects closer than 20 cm give false readings.
