Grove Pi Plus

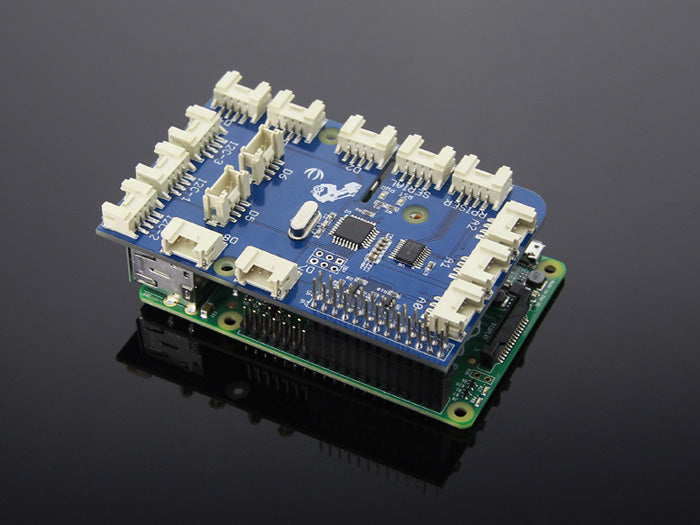

The Grove Pi Plus (GrovePi+) is an add-on board that sits on top of a Raspberry Pi and lets you connect Grove sensors, buttons, displays and actuators with simple plug-in cables. An on-board ATmega328 microcontroller reads the analog and digital ports and talks to the Raspberry Pi over I2C, so you can build IoT and robotics projects in Python without soldering or a breadboard.

Grove Pi Plus Specifications

• Ports: 15 Grove connectors
• Digital: 7 ports
• Analog: 3 ports
• I2C: 3 ports
• Serial: 1 port to the Raspberry Pi UART and 1 port to the on-board microcontroller
• Microcontroller: ATmega328
• Fits: Raspberry Pi models with the 40-pin GPIO header (check your model)
• Software: GrovePi Python library from Dexter Industries

Grove Pi Plus Applications

• Weather stations and home monitoring with Grove sensors
• IoT projects that send sensor data to the cloud
• Raspberry Pi coding lessons in schools
• Robotics and automation prototypes

What's in the Box

• 1 × Grove Pi Plus board

Tip: Enable I2C on the Raspberry Pi and install the GrovePi software before you connect sensors. The analog ports are read by the board's own microcontroller, which is what lets the Raspberry Pi, which has no analog inputs, use analog Grove sensors.
