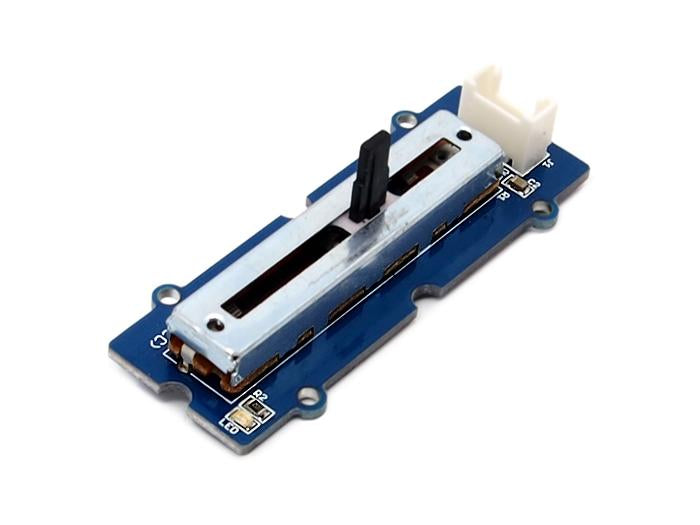

Grove Slide Potentiometer

The Grove Slide Potentiometer is a plug-and-play Grove module with a 10 kΩ linear slide potentiometer and 30 mm of travel. Moving the slider changes the analog voltage on the signal pin, so an Arduino, Seeeduino or Raspberry Pi with a Grove adapter can read its position. The Grove connector means no soldering or breadboard wiring is needed.

Grove Slide Potentiometer Specifications

• Resistance: 10 kΩ
• Taper: linear
• Travel: 30 mm
• Output: analog voltage from 0 V to the supply voltage
• Supply: 3.3 V or 5 V Grove systems
• Connector: 4-pin Grove (analog port)

Grove Slide Potentiometer Applications

• Volume, brightness and speed controls
• Setting thresholds and timers
• MIDI and music controllers
• Servo and motor position control in classroom projects

What's in the Box

• 1 × Grove Slide Potentiometer module

Tip: Plug the module into an analog Grove port, such as A0 on a Grove Base Shield, and read it with analogRead(). On an Arduino Uno the value runs from 0 to 1023 across the full slide.
