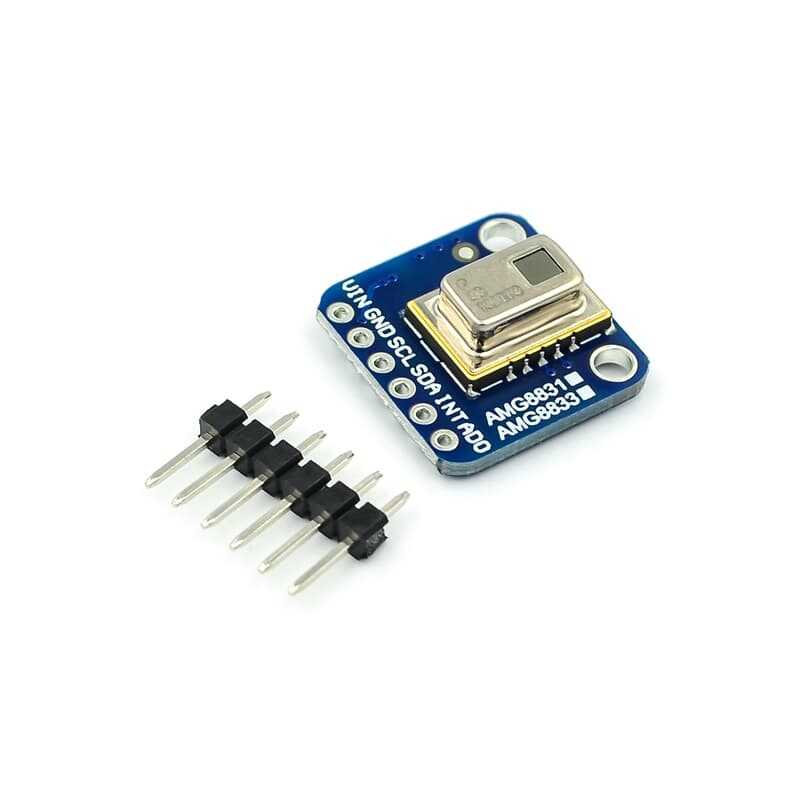

GY-AMG8833 Infrared Thermal Imager Sensor Module (Original )

The GY-AMG8833 Infrared Thermal Imager sensor module is based on the Panasonic AMG8833 Grid-EYE sensor, which measures temperature across an 8 × 8 grid of 64 infrared pixels. It works like a very low-resolution thermal camera, letting Arduino, ESP32 and Raspberry Pi projects detect people, find hot spots and build simple heat maps without contact.

GY-AMG8833 Infrared Thermal Imager Specifications

• Sensor: AMG8833 Grid-EYE infrared array
• Resolution: 8 × 8 pixels (64 thermopile elements)
• Temperature range: 0 °C to 80 °C
• Accuracy: ±2.5 °C typical
• Temperature resolution: 0.25 °C
• Field of view: 60°
• Human detection distance: up to about 7 m
• Frame rate: 1 or 10 frames per second
• Interface: I2C

GY-AMG8833 Infrared Thermal Imager Applications

• People counting and presence detection without a camera
• DIY thermal camera with a small display
• Finding hot components and overheating parts on circuit boards
• Robots that follow or avoid heat sources
• Smart home heating and occupancy projects

What's in the Box

• 1 × GY-AMG8833 thermal imager sensor module

Tip: Use the Adafruit AMG88xx library in the Arduino IDE to read all 64 temperatures, and interpolate the grid in software for a smoother image. Check the module's supply pin markings before wiring, and keep the sensor lens clean and uncovered.
