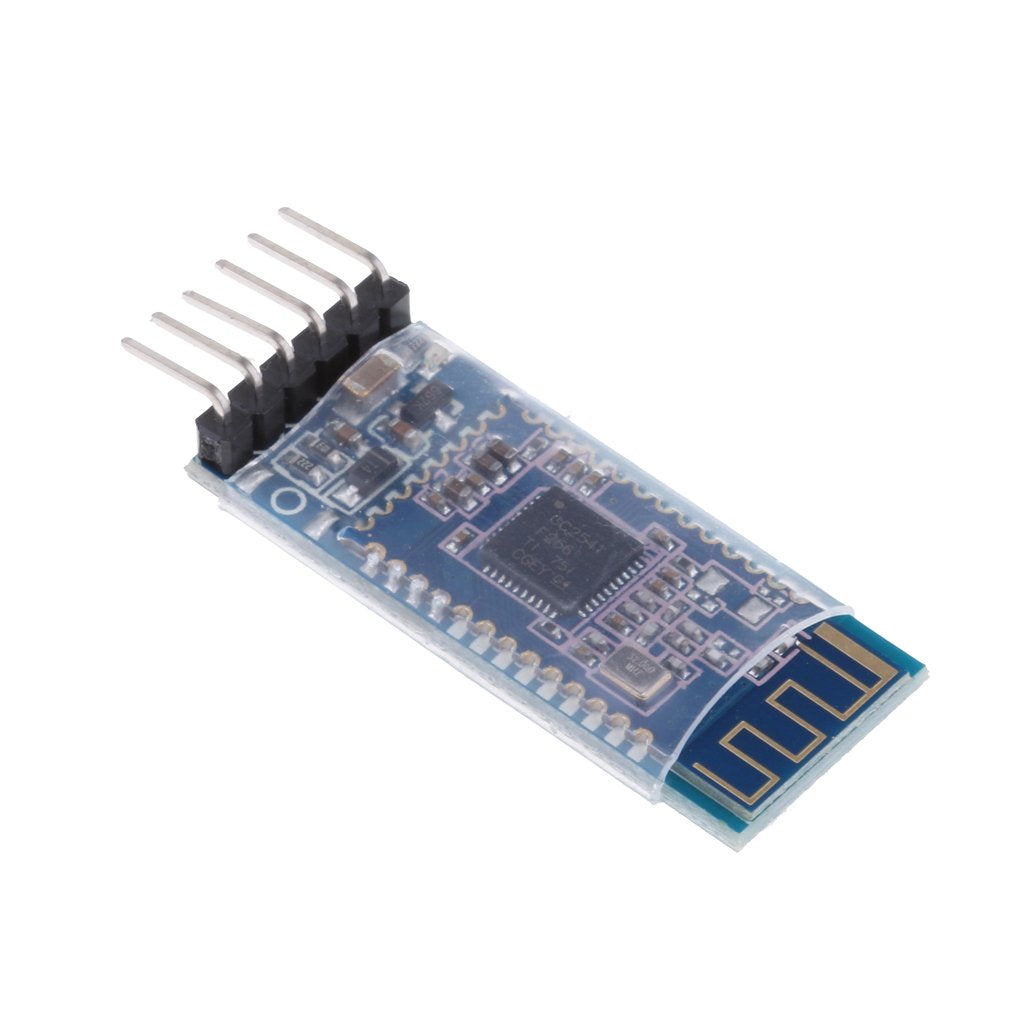

HM-10 Bluetooth 4.0 Module

The HM-10 Bluetooth 4.0 Module is a Bluetooth Low Energy (BLE) serial module based on the Texas Instruments CC2541 chip. It connects to a microcontroller through a simple UART serial link and lets an Arduino project exchange data with smartphones and tablets, including iPhones, which cannot connect to classic Bluetooth modules such as the HC-05 and HC-06.

HM-10 Bluetooth 4.0 Module Specifications

• Bluetooth version: 4.0 Low Energy (BLE)
• Chip: TI CC2541
• Interface: UART serial (TXD, RXD), 9600 baud by default
• Configuration: AT commands
• Board: 6-pin breakout (STATE, VCC, GND, TXD, RXD, BRK)
• Supply: 3.6–6 V on VCC, 3.3 V logic on the serial pins
• Works with: BLE-capable iOS and Android devices

HM-10 Bluetooth 4.0 Module Applications

• Phone-controlled robots and cars
• Sending sensor readings to a phone app
• Wireless switches and home automation
• MIT App Inventor and other BLE app projects

What's in the Box

• 1 × HM-10 Bluetooth 4.0 BLE module

Tip: The RXD pin uses 3.3 V logic, so feed it from a 5 V Arduino through a voltage divider, for example 1 kΩ and 2 kΩ. Connect with a BLE terminal app, because classic Bluetooth serial apps will not find the module.
