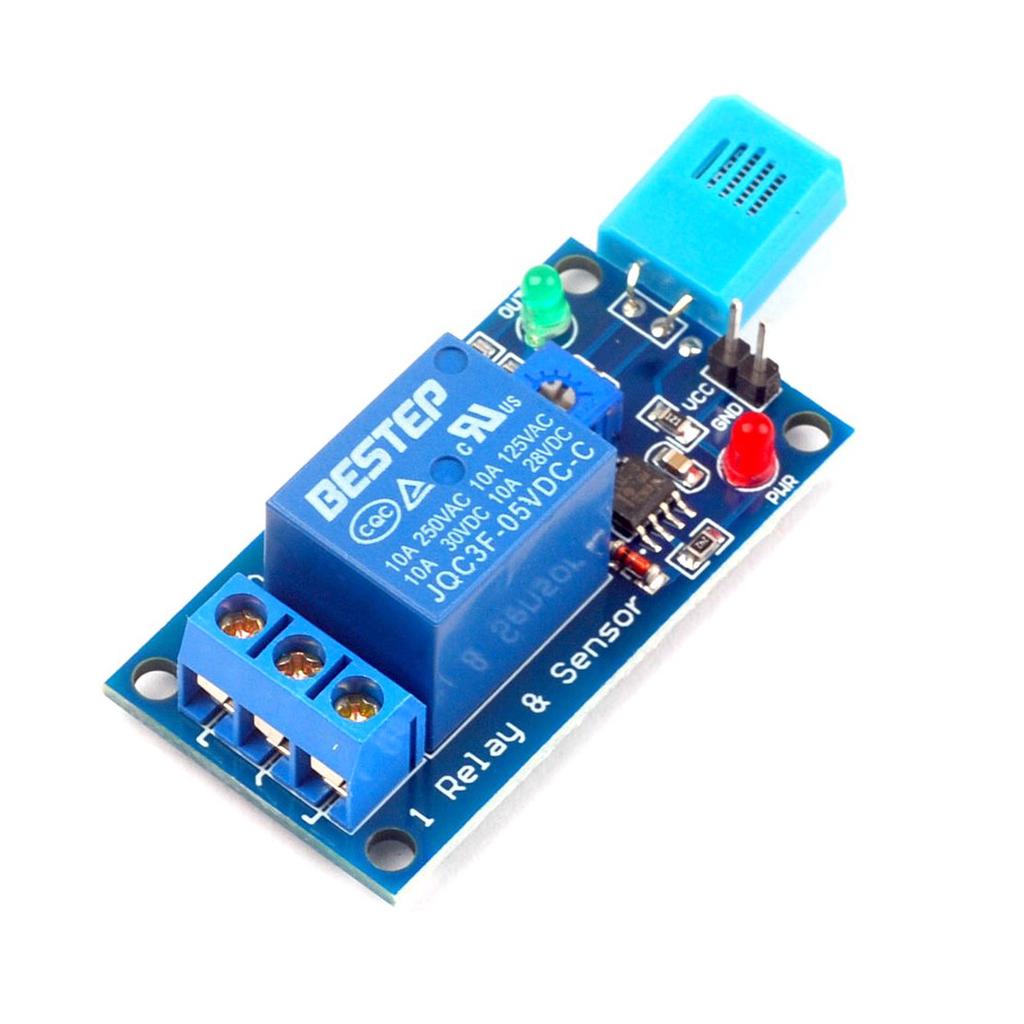

Humidity Sensitive Switch Relay Module

The Humidity Sensitive Switch Relay Module is a ready-made humidity controller board that switches a relay when the moisture in the air passes a level you set. A resistive humidity sensor feeds a comparator circuit, and a potentiometer adjusts the trip point, so you can turn a fan, dehumidifier, humidifier or alarm on and off automatically without a microcontroller or any code.

Humidity Sensitive Switch Relay Module Specifications

• Sensor: resistive humidity sensing element on the board
• Control circuit: comparator with a potentiometer to set the switching threshold
• Output: relay contacts with NO (normally open), COM and NC (normally closed) terminals
• Use: works stand-alone, no programming needed

Humidity Sensitive Switch Relay Module Applications

• Switching bathroom or storeroom exhaust fans when humidity rises
• Controlling a dehumidifier or humidifier in rooms, cupboards and greenhouses
• High-humidity alarms for warehouses and equipment cabinets
• Incubator, terrarium and mushroom-growing projects
• STEM lessons on sensors and automatic control

What's in the Box

• 1 × humidity sensitive switch relay module

Tip: Check the coil voltage printed on the relay (5 V and 12 V versions of this board exist) and power the module to match. Turn the potentiometer slowly and wait a few seconds after each step, because the sensor reacts gradually. If you switch mains loads, stay within the relay rating and keep all mains wiring fully insulated.
