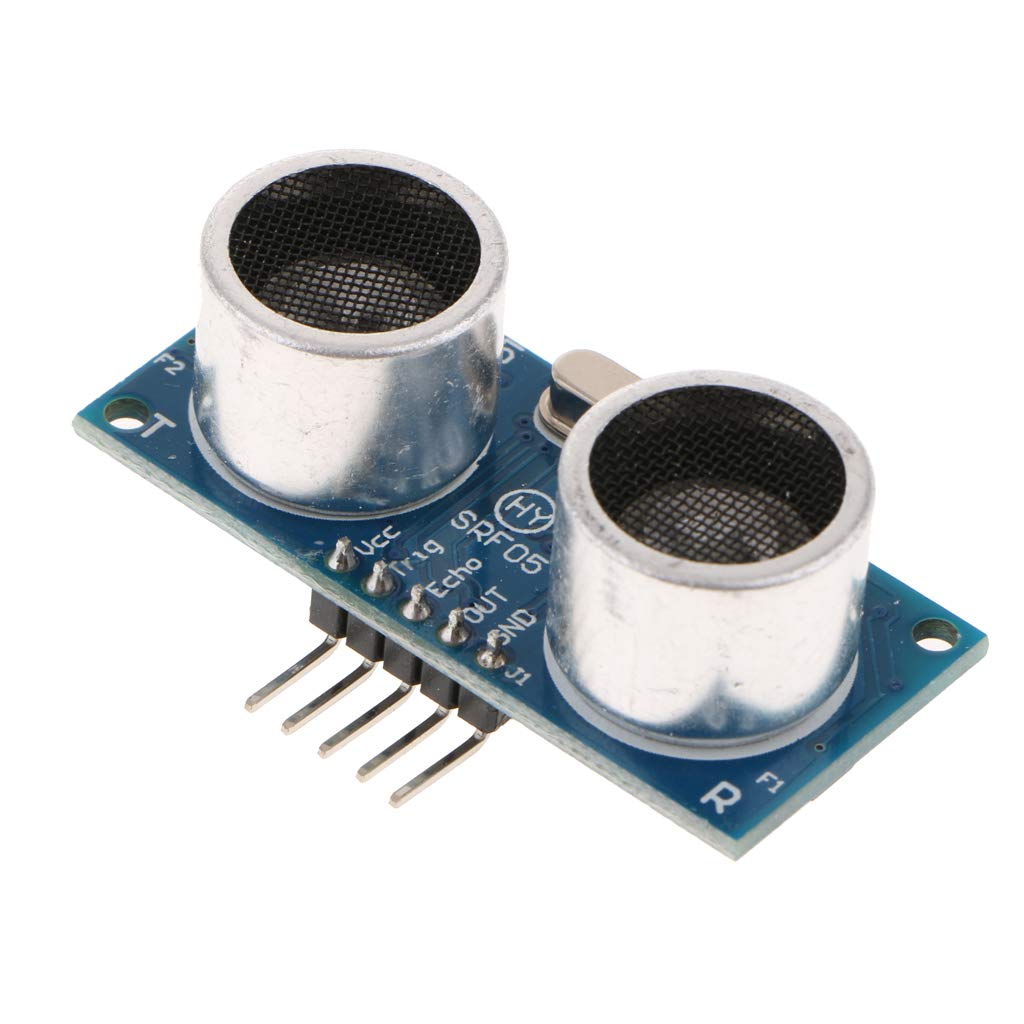

HY-SRF05 Ultrasonic sensors 5pin

The HY-SRF05 Ultrasonic sensor is a 5-pin distance measuring module that sends out a 40 kHz sound pulse and times the echo to find out how far away an object is. It uses the same Trig and Echo signals as the popular HC-SR04, so existing Arduino code and libraries work with it, and it is a favourite for obstacle-avoiding robots and level measurement projects.

HY-SRF05 Ultrasonic Sensor Specifications

• Supply voltage: 5 V DC
• Ultrasonic frequency: 40 kHz
• Measuring range: about 2 cm to 4 m, depending on the target
• Beam angle: about 15°
• Trigger: 10 µs high pulse on the Trig pin
• Output: Echo pulse whose width is proportional to the distance
• Pins: VCC, Trig, Echo, OUT, GND

HY-SRF05 Ultrasonic Sensor Applications

• Obstacle avoidance for robots and smart cars
• Water and tank level measurement
• Parking sensors and distance alarms
• People and object detection at doors and counters

What's in the Box

• 1 × HY-SRF05 ultrasonic sensor module, 5 pins

Tip: Distance in cm is roughly the Echo pulse width in µs divided by 58. Leave the OUT pin unconnected for normal HC-SR04-style use, and on 3.3 V boards such as the ESP32 use a voltage divider on the Echo line, because it outputs 5 V.
