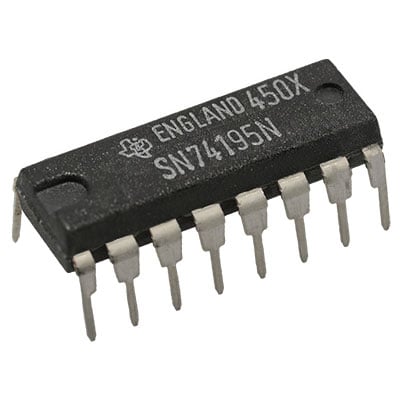

IC 74195 Shift 4-Bit

Part no. 10381175

$1.50
In stock
  • Pick up in Msaitbeh, Beirut
  • Delivery across Lebanon
  • Bulk and education pricing on request
Description

The IC 74195 is a 74-series 4-bit parallel-access shift register. It can load four bits at once from its parallel inputs or shift the data one place on each clock pulse, from QA towards QD, with J and K serial inputs feeding the first stage. This makes it useful for serial-to-parallel and parallel-to-serial conversion, simple counters and data delay circuits.

IC 74195 Specifications

  • Function: 4-bit shift register with parallel load and parallel outputs
  • Serial inputs: J and /K (K active low) into the first stage
  • Mode control: SH/LD, shift when high, parallel load when low
  • Clear: CLR, active low, asynchronous
  • Clock: positive-edge triggered
  • Outputs: QA, QB, QC, QD plus inverted QD
  • Package and supply: 16-pin DIP, 5 V, VCC on pin 16 and GND on pin 8

IC 74195 Applications

  • Serial-to-parallel and parallel-to-serial data conversion
  • Ring and Johnson counters using the inverted QD output
  • Data delay lines and sequence generators
  • Digital logic and computer architecture lab experiments

What's in the Box

  • 1 × 74195 4-bit shift register IC

Tip: Keep CLR (pin 1) high for normal operation. For a simple shift with one data input, connect J and /K together (pins 2 and 3) so the first stage copies the data bit on each rising clock edge. Add a 100 nF decoupling capacitor between pins 16 and 8.
