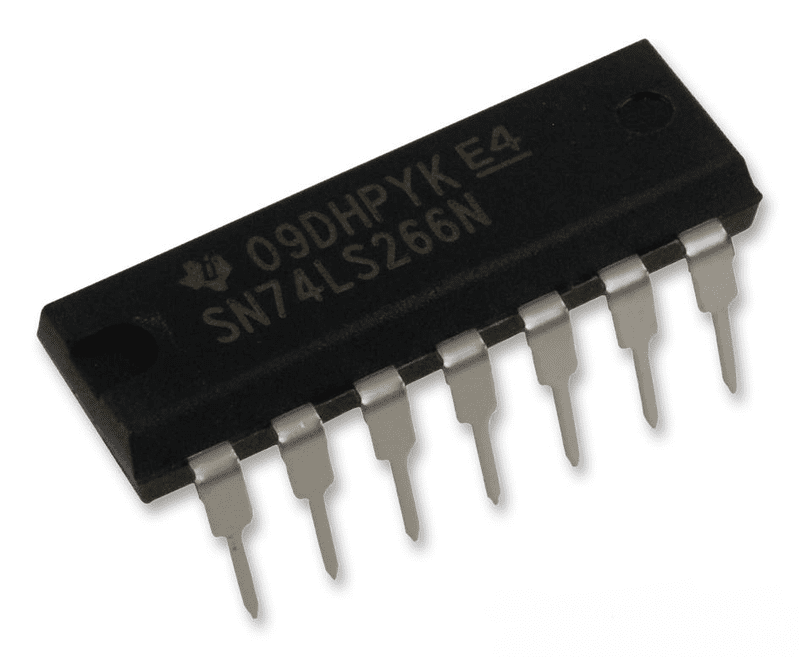

IC 74266 Quad XNOR Gate

The IC 74266 Quad XNOR Gate is a 74-series logic chip with four independent 2-input exclusive-NOR (XNOR) gates. Each output is high when both inputs are equal and low when they differ, which makes the chip a natural fit for equality checks and digital comparators. The outputs are open-collector, so several can be tied together to compare whole binary words.

IC 74266 Quad XNOR Gate Specifications

• Function: 4 × 2-input XNOR gates, Y = NOT (A XOR B)
• Outputs: open-collector, need an external pull-up resistor
• Supply voltage: 5 V (4.75–5.25 V for the 74LS266)
• Package: 14-pin DIP
• Power pins: VCC pin 14, GND pin 7
• Logic levels: TTL compatible

IC 74266 Quad XNOR Gate Applications

• 4-bit equality comparators (outputs wired together)
• Parity generators and checkers
• Controlled inverters and logic experiments
• Digital electronics labs and university courses

What's in the Box

• 1 × 74266 quad XNOR gate IC

Tip: Connect a pull-up resistor, for example 2.2 kΩ to 10 kΩ, from each output to 5 V; without it the output cannot go high. Tie unused inputs to GND or VCC rather than leaving them floating.
