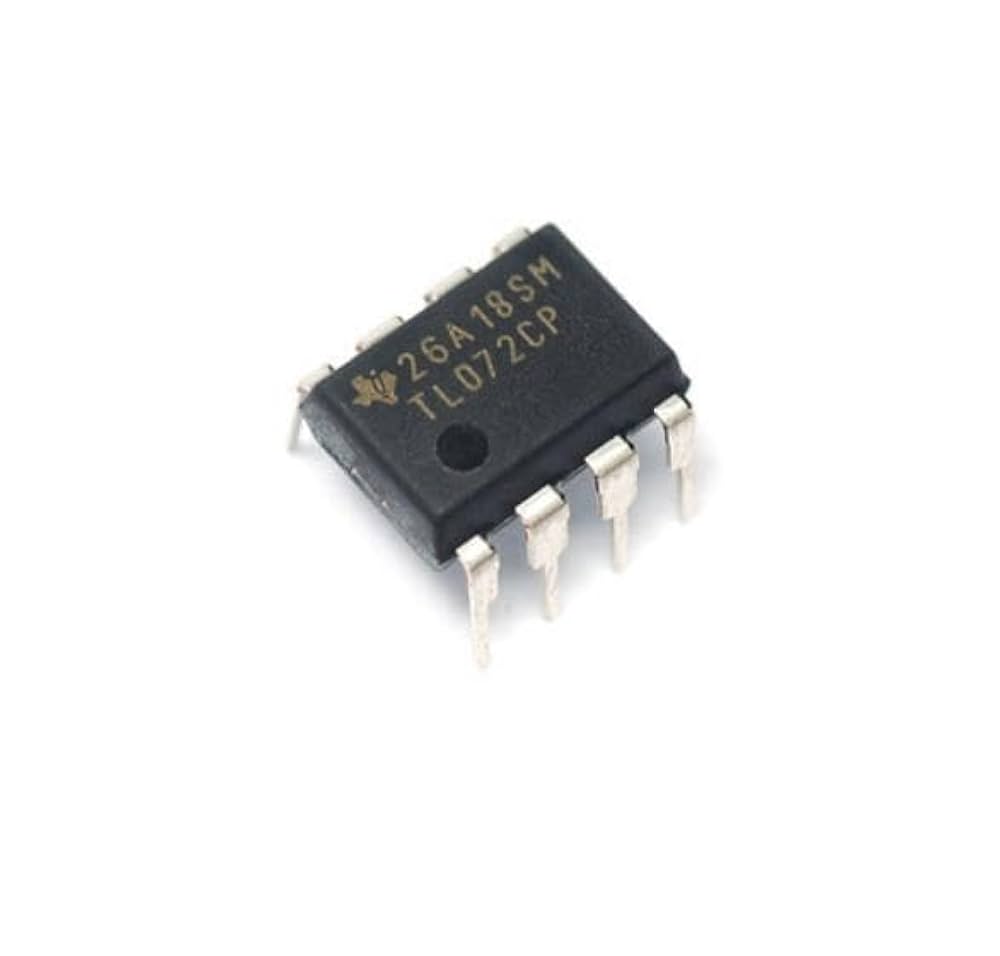

IC - TL072 Op Amp

The TL072 Op Amp is a dual low-noise operational amplifier with JFET inputs, giving you two independent op amps in one 8-pin IC. Its very high input impedance, low distortion and fast slew rate make it a favourite for audio preamps, guitar effects, active filters and sensor signal conditioning, running from split supplies such as ±12 V or ±15 V.

TL072 Op Amp Specifications

• Type: dual operational amplifier, JFET input
• Channels: 2 independent op amps
• Supply voltage: up to ±18 V (36 V total)
• Gain-bandwidth product: about 3 MHz
• Slew rate: about 13 V/µs
• Input noise: about 18 nV/√Hz
• Pins: 8, standard dual op-amp pinout (power on pins 4 and 8)

TL072 Op Amp Applications

• Audio preamplifiers, mixers and tone controls
• Guitar effects pedals and synthesiser circuits
• Active low-pass, high-pass and band-pass filters
• Buffers and amplifiers for high-impedance sensors
• Analog electronics labs and university courses

What's in the Box

• 1 × TL072 dual op amp IC

Tip: Connect V+ to pin 8 and V− to pin 4, and add 100 nF decoupling capacitors close to the supply pins. The TL072 is not a rail-to-rail part, so for single 5 V Arduino circuits a rail-to-rail op amp is a better choice.
