IIC/I2C Serial Interface Adapter Module

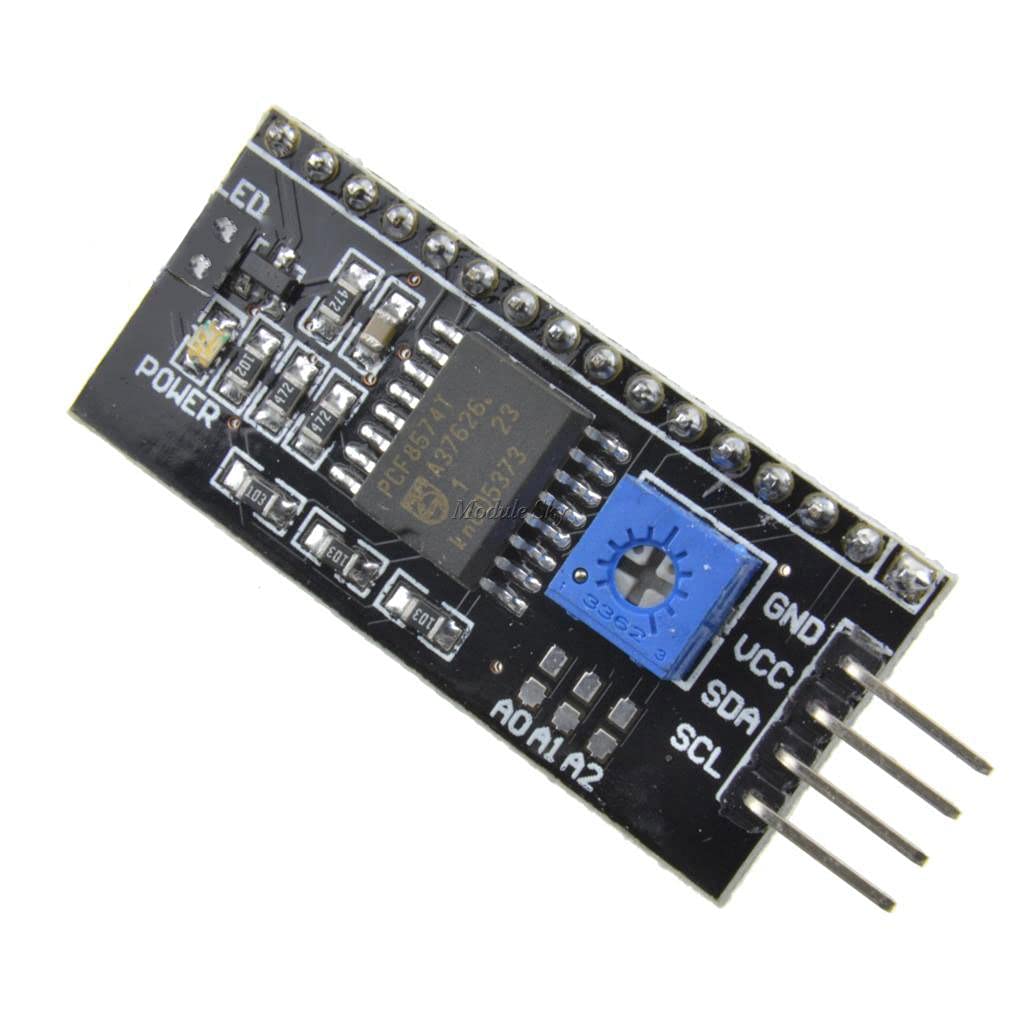

The IIC/I2C Serial Interface Adapter Module is a PCF8574-based backpack board for character LCDs with the standard HD44780 16-pin interface, such as the 1602 and 2004. Solder it to the back of the display and you can drive the LCD with just two wires, SDA and SCL, instead of six or more data pins, leaving your Arduino or ESP32 pins free for sensors and buttons.

IIC/I2C Serial Interface Adapter Module Specifications

• Chip: PCF8574 8-bit I/O expander
• Interface: I2C (SDA, SCL)
• I2C address: usually 0x27 or 0x3F depending on the chip version, changeable with the A0–A2 pads
• Display connection: 16-pin header for HD44780-compatible LCDs (1602, 2004)
• Contrast: adjustable with the on-board potentiometer
• Backlight: jumper to enable the LCD backlight, also switchable in software
• Supply voltage: 5 V
• Pins: GND, VCC, SDA, SCL

IIC/I2C Serial Interface Adapter Module Applications

• Adding a 16x2 or 20x4 LCD to Arduino, ESP32 or ESP8266 with 2 wires
• Menus and status screens for projects and machines
• Readouts for temperature, humidity and distance sensors
• Sharing one I2C bus between an LCD, an RTC and other modules

What's in the Box

• 1 × IIC/I2C serial interface adapter module (LCD not included)

Tip: Use the LiquidCrystal_I2C library and run an I2C scanner sketch first to find the module's address. If the screen lights up but shows no characters, turn the contrast potentiometer slowly until the text appears.
