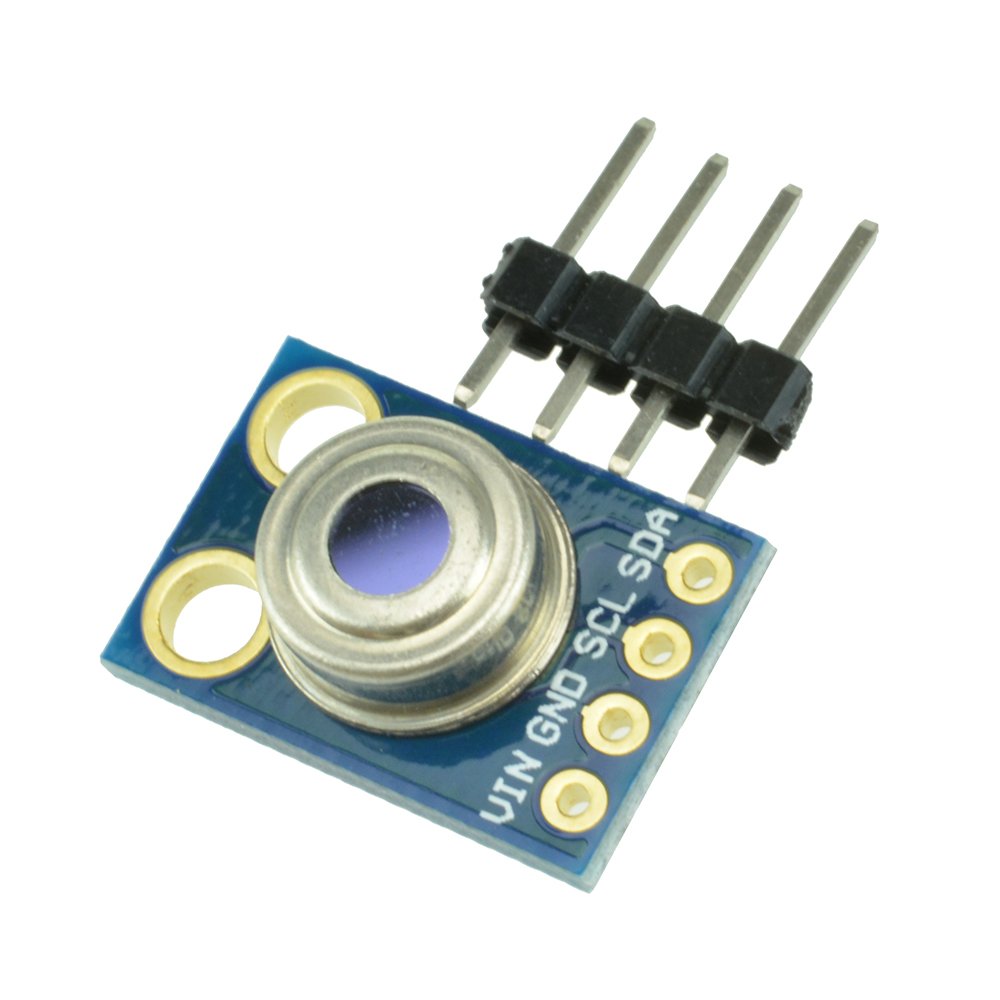

IR Temp Sensor MLX90614

The IR Temp Sensor MLX90614 measures temperature without touching the object, by reading the infrared energy it gives off. The Melexis MLX90614 is factory calibrated and reports both the object temperature and its own ambient temperature over a digital I2C (SMBus) interface, so it connects easily to Arduino, ESP32 and Raspberry Pi. It is used in contactless thermometers, motor and heater monitoring and many school projects.

IR Temp Sensor MLX90614 Specifications

• Sensor: Melexis MLX90614 infrared thermometer
• Object temperature range: –70 to +380 °C
• Ambient temperature range: –40 to +125 °C
• Accuracy: ±0.5 °C in the 0–50 °C range
• Resolution: 0.02 °C
• Interface: I2C / SMBus (default address 0x5A), PWM output also available
• Calibration: factory calibrated

IR Temp Sensor MLX90614 Applications

• Contactless thermometers
• Monitoring motors, heatsinks and 3D printer beds
• HVAC and smart home temperature sensing
• Checking food and liquid temperatures without contact
• Physics and STEM experiments on infrared radiation

What's in the Box

• 1 × MLX90614 IR temperature sensor

Tip: The sensor reads the average temperature of everything in its field of view, so move closer to small objects. Shiny metal surfaces reflect infrared and read low; cover them with matte tape or paint for accurate readings, and check whether your board needs 3.3 V or 5 V before powering it.
