IRF520 MOSFET Driver Module

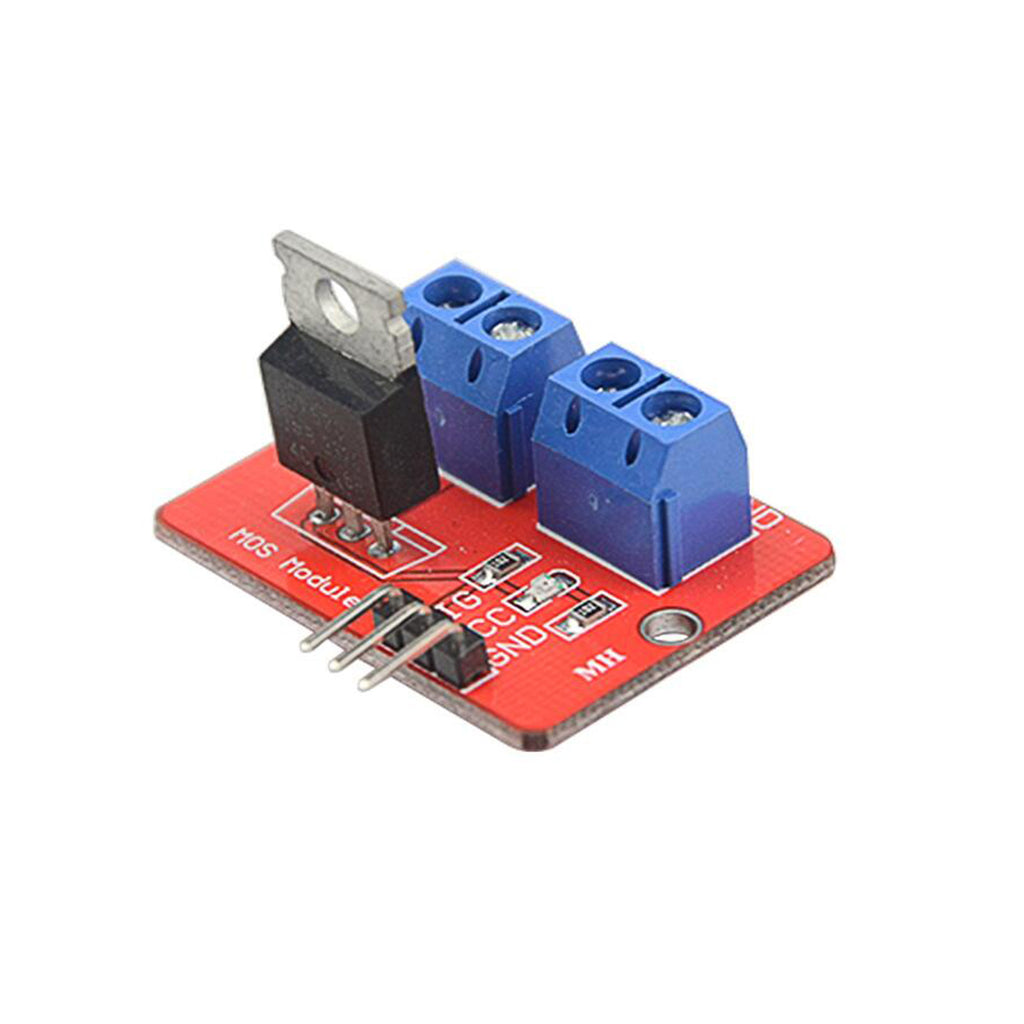

The IRF520 MOSFET Driver Module is a simple switching board built around the IRF520 N-channel power MOSFET. A digital or PWM signal from an Arduino or other microcontroller switches a separate DC load on and off, so you can control LED strips, small DC motors, pumps and solenoids from your code. Screw terminals make the power and load wiring quick.

IRF520 MOSFET Driver Module Specifications

• MOSFET: IRF520 N-channel, rated 100 V / 9.2 A
• Load voltage: up to 24 V DC (module rating)
• Load current: up to about 5 A; above 1 A, fit a heatsink
• Control pins: SIG, VCC, GND
• Terminals: VIN and GND for the load supply, V+ and V− to the load
• Control: on/off or PWM from a digital pin
• Indicator: on-board LED

IRF520 MOSFET Driver Module Applications

• Dimming 12 V LED strips with PWM
• Speed control of small DC motors and fans in one direction
• Switching pumps, solenoid valves and electromagnets
• Heaters and other DC loads in automation projects

What's in the Box

• 1 × IRF520 MOSFET driver module

Tip: The IRF520 is not a logic-level MOSFET, so with a 5 V gate signal it does not turn fully on and heats up at high currents; at 3.3 V (ESP32) it is weaker still. Fit a flyback diode such as the 1N4007 across motors, solenoids and pumps.
