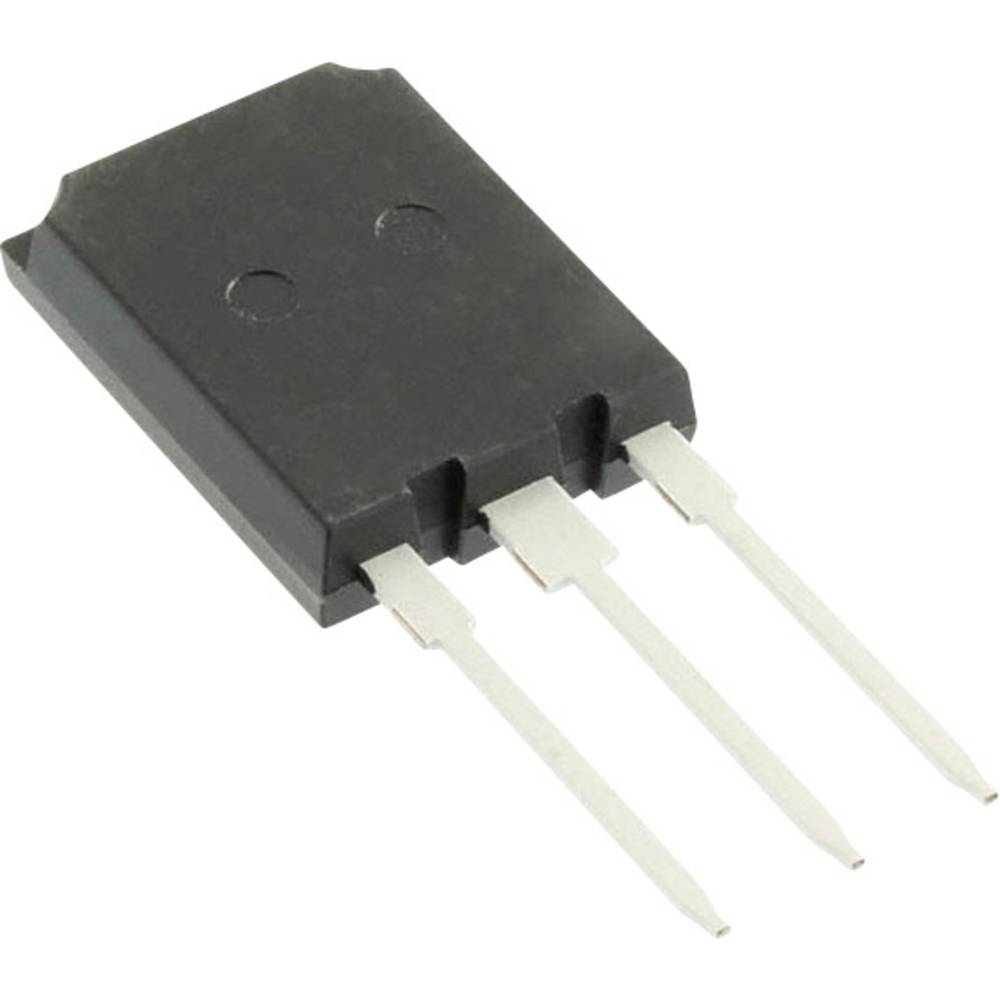

Mosfet Transistor IRFP250

The Mosfet Transistor IRFP250 is a high-power N-channel MOSFET rated for 200 V and 30 A in a large TO-247 package. The big package can handle a lot of heat when mounted on a heatsink, so it is widely used in inverters, switch-mode power supplies, motor drives, ZVS induction heaters and other high-current designs.

Mosfet Transistor IRFP250 Specifications

• Type: N-channel enhancement-mode power MOSFET
• Drain-source voltage (VDS): 200 V
• Continuous drain current (ID): 30 A at 25 °C case temperature
• On-resistance (RDS(on)): 0.085 Ω maximum at VGS = 10 V
• Gate threshold voltage: 2 V to 4 V
• Gate-source voltage: ±20 V maximum
• Power dissipation: 190 W at 25 °C case temperature
• Package: TO-247AC, pins gate, drain, source; the metal tab is the drain

Mosfet Transistor IRFP250 Applications

• DC-to-AC inverters and UPS systems
• Switch-mode power supplies
• High-current motor drivers and controllers
• ZVS induction heaters and other high-power DIY projects
• Electronic loads and power electronics labs

What's in the Box

• 1 × IRFP250 N-channel MOSFET

Tip: Drive the gate with 10 V to 12 V, ideally from a gate driver IC, because this is not a logic-level MOSFET and a 5 V pin will not turn it fully on. The tab is connected to the drain, so use an insulating pad and washer when several MOSFETs share one heatsink.
