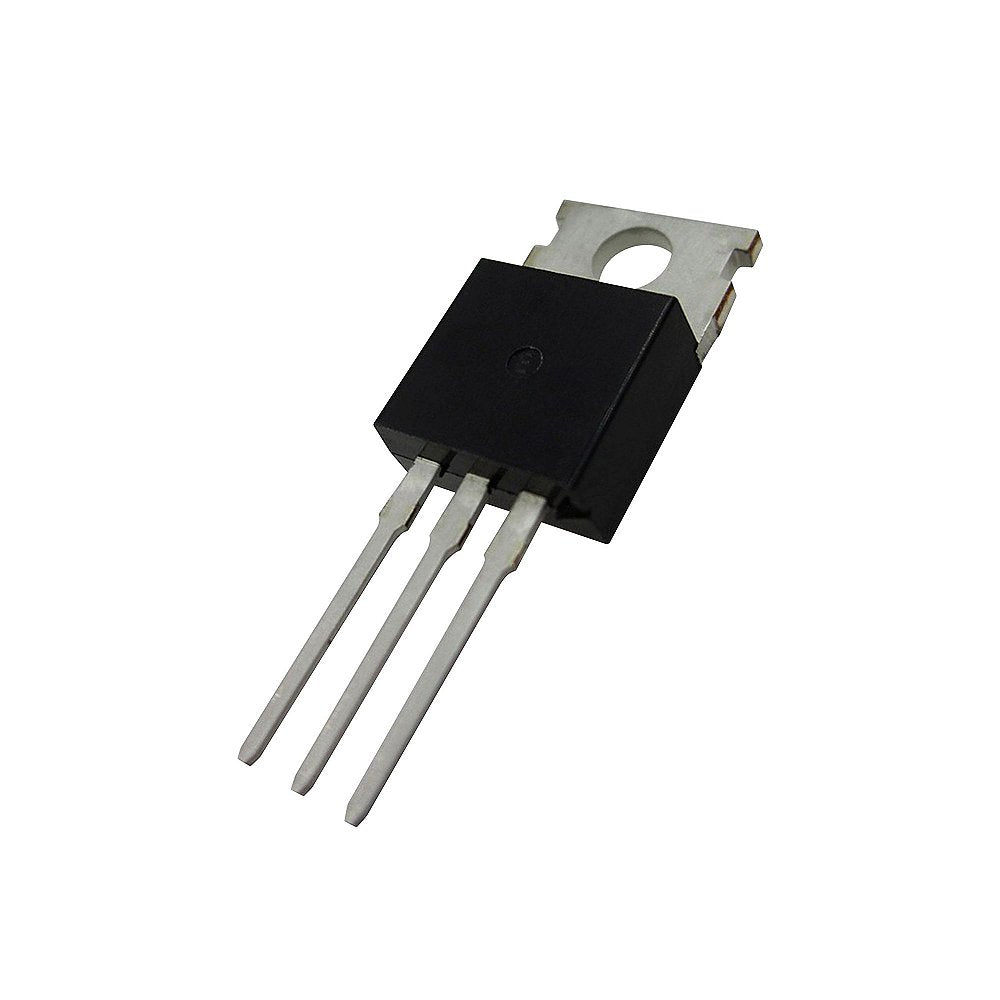

Mosfet Transistor IRL2203

The Mosfet Transistor IRL2203 is a logic-level N-channel power MOSFET rated for 30 V and very high current, with an on-resistance of only 7 mΩ. Because its on-resistance is also specified at a 4.5 V gate voltage, it can be switched directly from a 5 V Arduino output, making it a good choice for driving motors, LED strips and other heavy DC loads with little heat.

Mosfet Transistor IRL2203 Specifications

• Type: N-channel enhancement MOSFET, logic-level gate
• Drain-source voltage (VDS): 30 V
• Continuous drain current (ID): 116 A at 25 °C case (silicon limit)
• On-resistance RDS(on): 7.0 mΩ max at VGS = 10 V, 10 mΩ max at VGS = 4.5 V
• Gate-source voltage: ±16 V max
• Power dissipation: 180 W at 25 °C case
• Max junction temperature: 175 °C

Mosfet Transistor IRL2203 Applications

• Switching DC motors, pumps and solenoids from an Arduino
• PWM dimming of 12 V LED strips
• Low-voltage DC-DC converters and battery power switches
• Electronic loads and high-current 12 V projects
• Robotics motor drivers

What's in the Box

• 1 × IRL2203 N-channel MOSFET

Tip: Add a 100 Ω to 220 Ω resistor in series with the gate and a 10 kΩ pull-down from gate to source so the MOSFET stays off at power-up. Place a flyback diode across motors and solenoids, and keep the gate voltage below 16 V.
