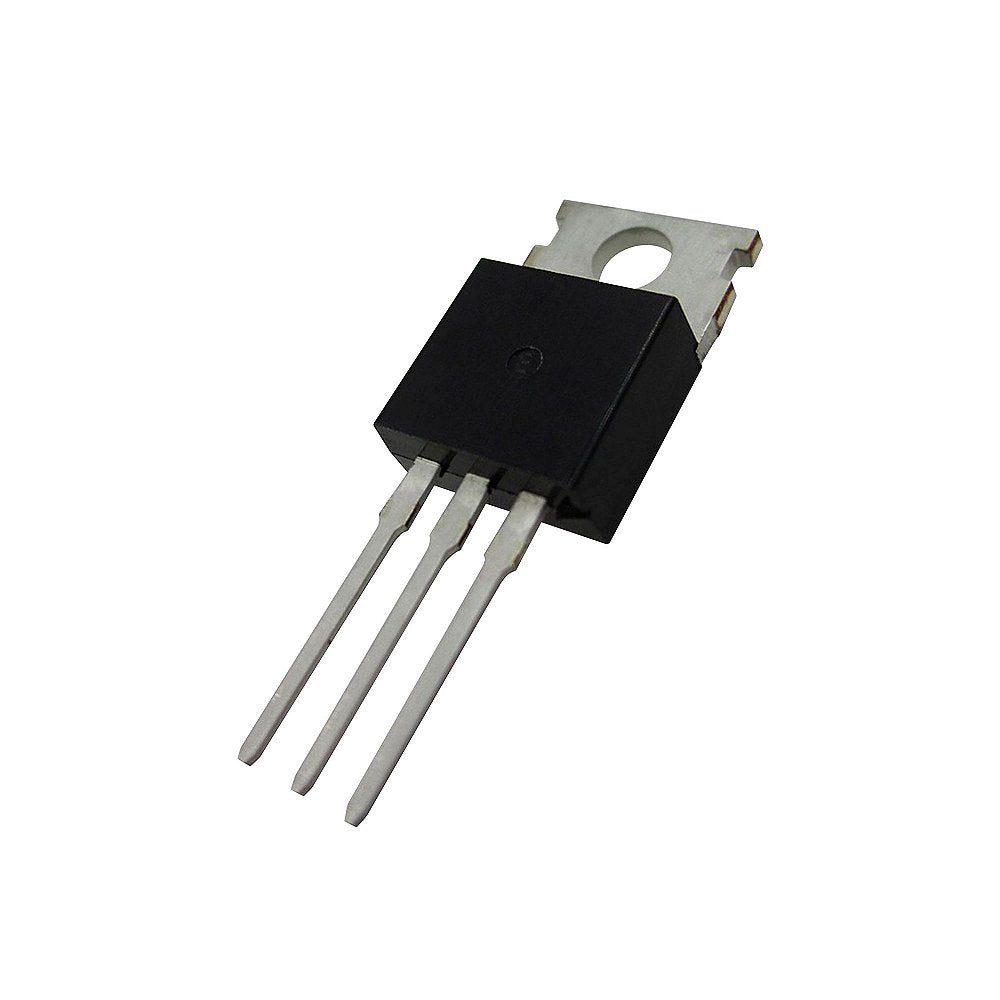

Mosfet Transistor IRL3705

The Mosfet Transistor IRL3705 is a logic-level N-channel power MOSFET rated for 55 V with a very low on-resistance of about 10 mΩ. It switches fully on with a 5 V gate signal, so an Arduino can control high-current loads such as motors, heaters, LED strips and battery packs with little heat loss in the transistor. It comes in a TO-220 package for heatsink mounting.

Mosfet Transistor IRL3705 Specifications

• Type: logic-level N-channel power MOSFET
• Drain-source voltage (VDS): 55 V
• Drain current (ID): 89 A continuous at VGS = 10 V, case at 25 °C
• On-resistance (RDS(on)): 10 mΩ at 10 V, 12 mΩ at 5 V, 18 mΩ at 4 V
• Gate threshold voltage: 1–2 V
• Gate-source voltage: ±16 V maximum
• Power dissipation: 170 W with the case at 25 °C
• Package: TO-220AB, pins gate, drain, source (tab = drain)

Mosfet Transistor IRL3705 Applications

• High-current DC motor and pump control
• 12 V and 24 V heater and LED strip switching
• Battery disconnect and power distribution switches
• E-bike, RC and robotics power stages

What's in the Box

• 1 × IRL3705 N-channel MOSFET

Tip: The 89 A figure is a die rating at 25 °C case temperature; in practice the current is limited by the TO-220 leads, the wiring and the heatsink, so size them for your real load. Add a 100 Ω gate resistor and a 10 kΩ pull-down from gate to source.
