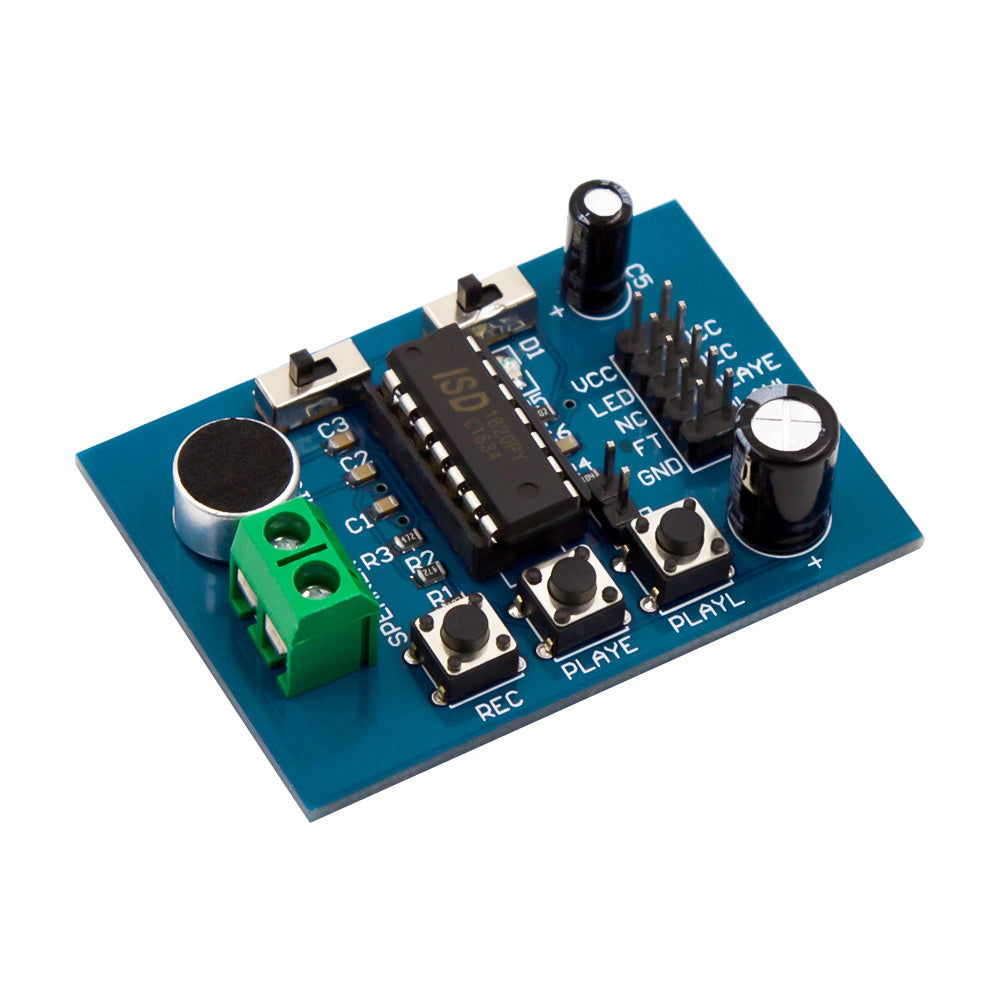

ISD1820 Voice Board Module Recording with Terminal

The ISD1820 Voice Board Module records a short voice message and plays it back at the press of a button. Built around the ISD1820 single-chip record and playback IC, it has a microphone, record and play buttons and a speaker output on the board, and the message stays stored even with the power off. It works on its own or triggered from an Arduino.

ISD1820 Voice Board Module Specifications

• Chip: ISD1820 voice record/playback IC
• Supply voltage: 3–5 V DC
• Recording time: about 10 seconds, one message
• Storage: non-volatile, kept without power
• Microphone: on-board electret microphone
• Buttons: REC (record), PLAYE (play the whole message) and PLAYL (play while held)
• Speaker output: drives an 8 Ω, 0.5 W speaker directly
• Control pins: REC, PLAYE and PLAYL header pins for a microcontroller

ISD1820 Voice Board Module Applications

• Talking toys, greeting cards and gifts
• Voice prompts and spoken alarms
• Doorbell and shop-entrance messages
• Arduino projects that speak when a sensor is triggered

What's in the Box

• 1 × ISD1820 voice recording module

Tip: Hold REC while speaking close to the microphone, release it, then press PLAYE to hear the message. To trigger playback from an Arduino, connect a digital pin to PLAYE, share a common ground and pulse the pin HIGH.
