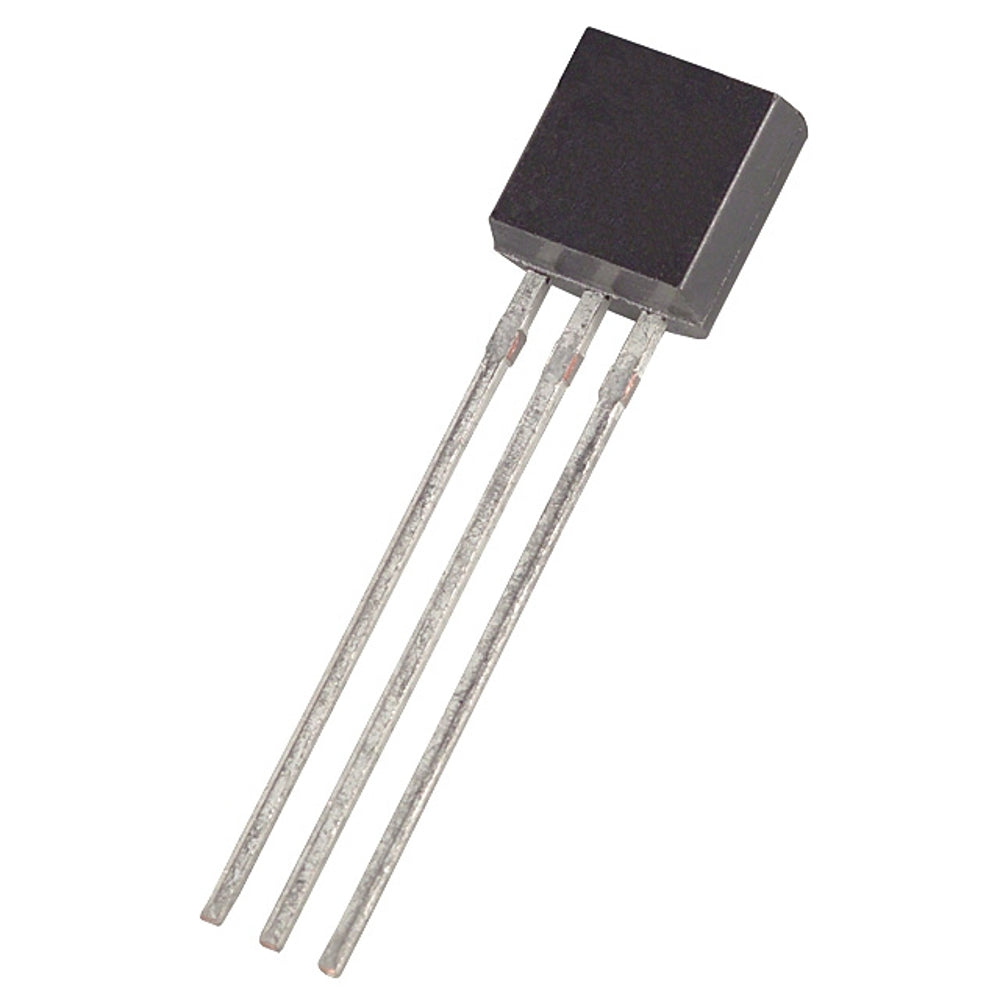

JFET Transistor BF245A 30V 25mA N-Channel

The JFET Transistor BF245A is an N-channel junction field-effect transistor in a TO-92 package, rated 30 V and 25 mA. JFETs have a very high input impedance and low noise, so the BF245A is widely used in RF and VHF amplifiers, radio front ends, pre-amplifiers and high-impedance buffer stages.

JFET Transistor BF245A Specifications

• Type: N-channel JFET
• Drain-source voltage (VDS): 30 V
• Maximum drain current: 25 mA
• Drain saturation current (IDSS): 2–6.5 mA for the A grade
• Power dissipation: 300 mW
• Frequency: usable up to about 700 MHz
• Package: TO-92, through-hole

JFET Transistor BF245A Applications

• VHF and FM radio RF amplifiers and mixers
• High-impedance buffers for sensors, guitar pickups and test equipment
• Low-noise audio pre-amplifiers
• Oscillators
• Simple constant-current sources

What's in the Box

• 1 × BF245A N-channel JFET

Tip: The BF245 pinout differs from many other JFETs, so check the datasheet before soldering. A JFET conducts at 0 V gate-source voltage; apply a negative gate-source voltage to reduce the drain current.
