JFET Transistor N-Ch 40V 50mA  PN4392 5pcs

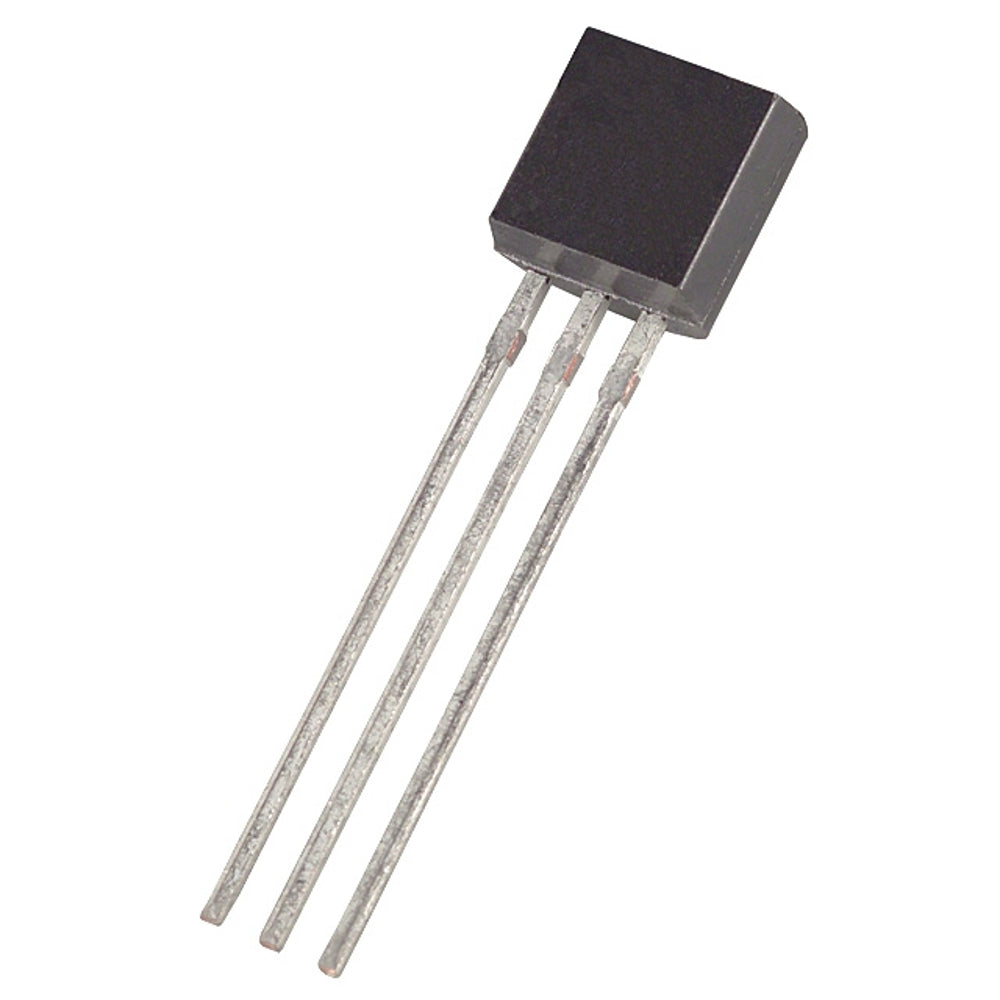

The JFET Transistor N-Ch 40V 50mA PN4392 pack contains five PN4392 N-channel junction field-effect transistors in a TO-92 package. The PN4392 is designed as a low-level analog switch: it has a low on-resistance of 60 Ω maximum and a very high gate impedance, which makes it suitable for analog switches, sample-and-hold circuits, choppers and audio signal switching.

JFET Transistor N-Ch 40V 50mA PN4392 Specifications

• Type: N-channel JFET
• Drain-gate voltage: 40 V
• Gate-source voltage: −40 V maximum
• Forward gate current: 50 mA maximum
• On-resistance (rDS(on)): 60 Ω maximum
• Gate-source cut-off voltage (VGS(off)): −2 V to −5 V
• Zero-gate drain current (IDSS): 25 mA to 75 mA
• Package: TO-92
• Pack size: 5 pieces

JFET Transistor N-Ch 40V 50mA PN4392 Applications

• Analog switches and multiplexers
• Sample-and-hold circuits
• Chopper-stabilised amplifiers
• Audio signal muting and switching
• Constant-current sources and electronics labs

What's in the Box

• 5 × PN4392 N-channel JFETs

Tip: A JFET conducts when its gate is at 0 V; pull the gate more than about 5 V below the source to switch it fully off. The pin order differs between manufacturers, so check the datasheet before wiring.
